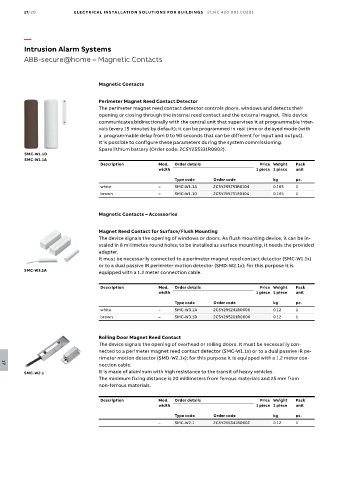

17/20 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Intrusion Alarm Systems
ABB-secure@home – Magnetic Contacts

Magnetic Contacts

Perimeter Magnet Reed Contact Detector
The perimeter magnet reed contact detector controls doors, windows and detects their
opening or closing through the internal reed contact and the external magnet. This device
communicates bidirectionally with the central unit that supervises it at programmable inter-
vals (every 15 minutes by default); it can be programmed in real time or delayed mode (with
a programmable delay from 0 to 90 seconds that can be different for input and output).
It is possible to configure these parameters during the system commissioning.
Spare lithium battery (Order code: 2CSY255331R0802).
SMC-W1.1D
SMC-W1.1A
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
white – SMC-W1.1A 2CSY255791R0104 0.165 1
brown – SMC-W1.1D 2CSY255731R0104 0.165 1

Magnetic Contacts – Accessories

Magnet Reed Contact for Surface/Flush Mounting
The device signals the opening of windows or doors. As flush mounting device, it can be in-
staled in 8 millimetes round holes; to be installed as surface mounting, it needs the provided
adapter.
It must be necessarily connected to a perimeter magnet reed contact detector (SMC-W1.1x)
or to a dual passive IR perimeter motion detector (SMD-W2.1x); for this purpose it is
SMC-W3.1A
equipped with a 1.2 meter connection cable.
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white – SMC-W3.1A 2CSY295241R0606 0.12 1
brown – SMC-W3.1D 2CSY295201R0606 0.12 1

Rolling Door Magnet Reed Contact
The device signals the opening of overhead or rolling doors. It must be necessarily con-
nected to a perimeter magnet reed contact detector (SMC-W1.1x) or to a dual passive IR pe-
rimeter motion detector (SMD-W2.1x); for this purpose it is equipped with a 1.2 meter con-
nection cable.
17
SMC-W2.1 It is made of aluminum with high resistance to the transit of heavy vehicles.
The minimum fixing distance is 20 millimeters from ferrous materials and 25 mm from
non-ferrous materials.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– SMC-W2.1 2CSY255341R0602 0.12 1
