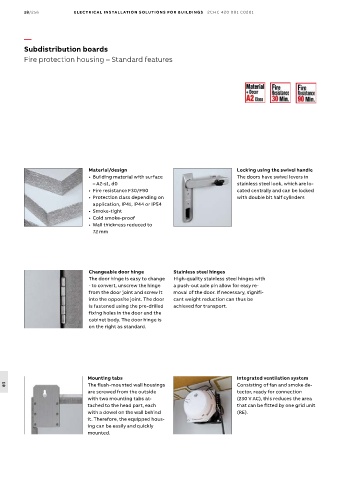

Subdistribution boards
Fire protection housing – Standard features

Material/design Locking using the swivel handle
• Building material with surface The doors have swivel levers in
– A2-s1, d0 stainless steel look, which are lo-
• Fire resistance F30/F90 cated centrally and can be locked
• Protection class depending on with double bit half cylinders
application, IP41, IP44 or IP54
• Smoke-tight
• Cold smoke-proof
• Wall thickness reduced to
72 mm

Changeable door hinge Stainless steel hinges
The door hinge is easy to change High-quality stainless steel hinges with
- to convert, unscrew the hinge a push-out axle pin allow for easy re-
from the door joint and screw it moval of the door. If necessary, signifi-
into the opposite joint. The door cant weight reduction can thus be
is fastened using the pre-drilled achieved for transport.
fixing holes in the door and the
cabinet body. The door hinge is
on the right as standard.

Mounting tabs Integrated ventilation system
The flush-mounted wall housings Consisting of fan and smoke de-
18
are screwed from the outside tector, ready for connection
with two mounting tabs at- (230 V AC), this reduces the area
tached to the head part, each that can be fitted by one grid unit
with a dowel on the wall behind (RE).
it. Therefore, the equipped hous-
ing can be easily and quickly
mounted.
