Subdistribution boards

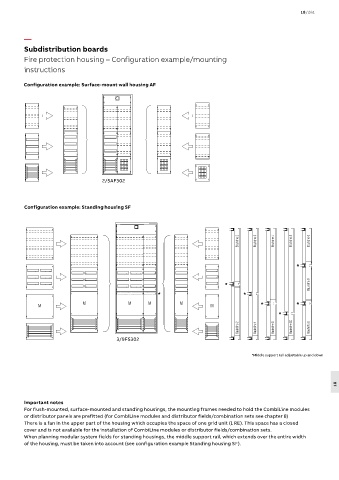

Fire protection housing – Configuration example/mounting
instructions
Configuration example: Surface-mount wall housing AF
2/5AF302
Configuration example: Standing housing SF
3/9FS302
*Middle support rail adjustable up and down
18
Important notes
For flush-mounted, surface-mounted and standing housings, the mounting frames needed to hold the CombiLine modules
or distributor panels are prefitted (for CombiLine modules and distributor fields/combination sets see chapter 8)
There is a fan in the upper part of the housing which occupies the space of one grid unit (1 RE). This space has a closed
cover and is not available for the installation of CombiLine modules or distributor fields/combination sets.
When planning modular system fields for standing housings, the middle support rail, which extends over the entire width
of the housing, must be taken into account (see configuration example Standing housing SF).
