18/257

—

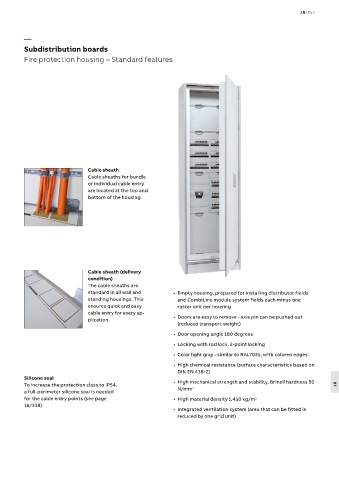

Subdistribution boards
Fire protection housing – Standard features

Cable sheath
Cable sheaths for bundle
or individual cable entry
are located at the top and
bottom of the housing.

Cable sheath (delivery
condition)
The cable sheaths are
standard in all wall and • Empty housing, prepared for installing distributor fields
standing housings. This and CombiLine module system fields each minus one
ensures quick and easy raster unit per housing
cable entry for every ap-
plication. • Doors are easy to remove - axle pin can be pushed out
(reduced transport weight)

• Door opening angle 180 degrees
• Locking with rod lock, 2-point locking
• Color light gray - similar to RAL7035, with colored edges
• High chemical resistance (surface characteristics based on
DIN EN 438-2)
Silicone seal
To increase the protection class to IP54, • High mechanical strength and stability, Brinell hardness 50 18
2
a full-perimeter silicone seal is needed N/mm
for the cable entry points (see page • High material density 1,450 kg/m 3
18/338).
• Integrated ventilation system (area that can be fitted is
reduced by one grid unit)
