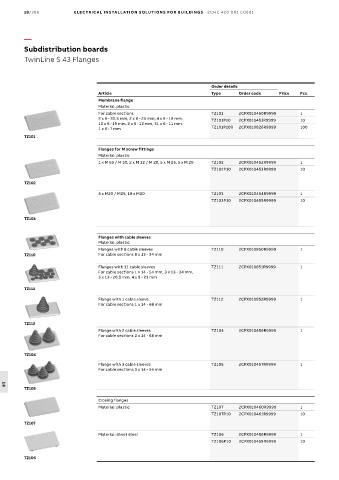

18/306 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
TwinLine S 43 Flanges

Order details
Article Type Order code Price Pcs.
Membrane flange
Material: plastic
For cable sections TZ101 2CPX010450R9999 1
2 x 6 - 32.5 mm, 2 x 6 - 25 mm, 4 x 6 - 19 mm, TZ101P10 2CPX010451R9999 10
10 x 6 - 15 mm, 2 x 6 - 12 mm, 31 x 6 - 11 mm,
1 x 6 - 7 mm TZ101P100 2CPX010826R9999 100
TZ101

Flanges for M screw fittings
Material: plastic
1 x M 63 / M 50, 2 x M 32 / M 20, 5 x M 25, 5 x M 20 TZ102 2CPX010452R9999 1
TZ102P10 2CPX010453R9999 10

TZ102
4 x M20 / M25, 18 x M20 TZ103 2CPX010454R9999 1
TZ103P10 2CPX010455R9999 10

TZ103

Flanges with cable sleeves
Material: plastic
Flanges with 8 cable sleeves TZ110 2CPX010850R9999 1
TZ110 For cable sections 8 x 13 - 34 mm

Flanges with 11 cable sleeves TZ111 2CPX010851R9999 1
For cable sections 1 x 14 - 54 mm, 3 x 13 - 34 mm,
3 x 13 - 26.5 mm, 4 x 5 - 21 mm

TZ111
Flange with 1 cable sleeve TZ112 2CPX010852R9999 1
For cable sections 1 x 14 - 68 mm

TZ112
Flange with 2 cable sleeves TZ104 2CPX010456R9999 1
For cable sections 2 x 14 - 68 mm

TZ104
Flange with 3 cable sleeves TZ105 2CPX010457R9999 1
For cable sections 3 x 14 - 54 mm

TZ105
18
Closing flanges
Material: plastic TZ107 2CPX010460R9999 1
TZ107P10 2CPX010461R9999 10
TZ107

Material: sheet steel TZ106 2CPX010458R9999 1
TZ106P10 2CPX010459R9999 10

TZ106
