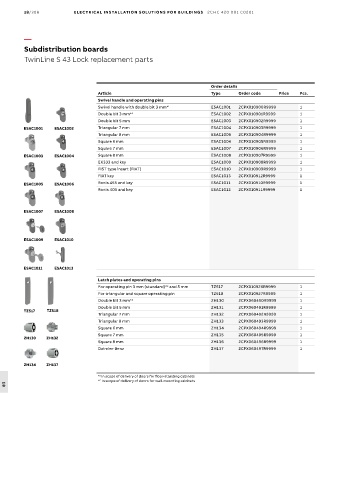

18/308 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
TwinLine S 43 Lock replacement parts

Order details
Article Type Order code Price Pcs.
Swivel handle and operating pins
Swivel handle with double bit 3 mm* 1 ESAC1001 2CPX010900R9999 1
Double bit 3 mm* 1 ESAC1002 2CPX010901R9999 1
Double bit 5 mm ESAC1003 2CPX010902R9999 1
ESAC1001 ESAC1002 Triangular 7 mm ESAC1004 2CPX010903R9999 1
Triangular 8 mm ESAC1005 2CPX010904R9999 1
Square 6 mm ESAC1006 2CPX010905R9999 1
Square 7 mm ESAC1007 2CPX010906R9999 1
ESAC1003 ESAC1004 Square 8 mm ESAC1008 2CPX010907R9999 1
EK333 and key ESAC1009 2CPX010908R9999 1
FIST type insert (FIAT) ESAC1010 2CPX010909R9999 1
FIAT key ESAC1013 2CPX010912R9999 1
ESAC1005 ESAC1006 Ronis 455 and key ESAC1011 2CPX010910R9999 1
Ronis 405 and key ESAC1012 2CPX010911R9999 1

ESAC1007 ESAC1008

ESAC1009 ESAC1010

ESAC1011 ESAC1013

Latch plates and operating pins
For operating pin 3 mm (standard)* and 5 mm TZ517 2CPX010926R9999 1
2
For triangular and square operating pin TZ518 2CPX010927R9999 1
Double bit 3 mm* 2 ZH130 2CPX060490R9999 1
Double bit 5 mm ZH131 2CPX060491R9999 1
TZ517 TZ518
Triangular 7 mm ZH132 2CPX060492R9999 1
Triangular 8 mm ZH133 2CPX060493R9999 1
Square 6 mm ZH134 2CPX060494R9999 1
ZH130 ZH132 Square 7 mm ZH135 2CPX060495R9999 1
Square 8 mm ZH136 2CPX060496R9999 1
Daimler-Benz ZH137 2CPX060497R9999 1

ZH134 ZH137

* 1 In scope of delivery of doors for floor-standing cabinets
* 2 In scope of delivery of doors for wall-mounting cabinets
