18/303
—

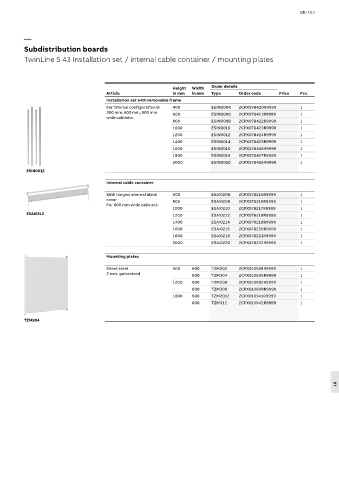

Subdistribution boards
TwinLine S 43 Installation set / internal cable container / mounting plates
Height Width Order details
Article in mm in mm Type Order code Price Pcs.
Installation set with removable frame
For internal configuration in 400 ESIN0004 2CPX078420R9999 1
300 mm, 600 mm, 800 mm 600 ESIN0006 2CPX078421R9999 1
wide cabinets
800 ESIN0008 2CPX078422R9999 1
1000 ESIN0010 2CPX078423R9999 1
1200 ESIN0012 2CPX078424R9999 1
1400 ESIN0014 2CPX078425R9999 1
1600 ESIN0016 2CPX078426R9999 1
1800 ESIN0018 2CPX078427R9999 1
2000 ESIN0020 2CPX078428R9999 1
ESIN0012
Internal cable container
With hinged internal blind 600 ESAI0206 2CPX078215R9999 1
cover 800 ESAI0208 2CPX078216R9999 1
For 800 mm wide cabinets
1000 ESAI0210 2CPX078217R9999 1
ESAI0212 1200 ESAI0212 2CPX078218R9999 1
1400 ESAI0214 2CPX078219R9999 1
1600 ESAI0216 2CPX078220R9999 1
1800 ESAI0218 2CPX078221R9999 1
2000 ESAI0220 2CPX078222R9999 1
Mounting plates
Sheet steel 600 600 TZM204 2CPX010598R9999 1
2 mm, galvanised 800 TZM304 2CPX010605R9999 1
1200 600 TZM208 2CPX010602R9999 1
800 TZM308 2CPX010609R9999 1
1800 600 TZM2012 2CPX010941R9999 1
800 TZM312 2CPX010942R9999 1
TZM304
18
