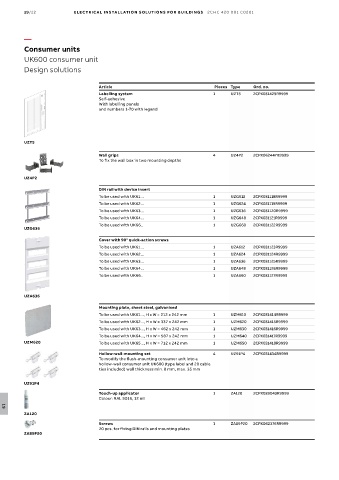

19/22 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Consumer units
UK600 consumer unit
Design solutions

Article Pieces Type Ord. no.
Labelling system 1 UZT5 2CPX031429R9999
Self-adhesive
With labelling panels
and numbers 1-70 with legend

UZT5

Wall grips 4 UZ4P2 2CPX062447R9999
To fix the wall box in two mounting depths

UZ4P2

DIN rail with device insert
To be used with UK61... 1 UZG612 2CPX031118R9999
To be used with UK62... 1 UZG624 2CPX031119R9999
To be used with UK63... 1 UZG636 2CPX031120R9999
To be used with UK64... 1 UZG648 2CPX031121R9999
To be used with UK66.. 1 UZG660 2CPX031122R9999
UZG636
Cover with 90° quick-action screws
To be used with UK61... 1 UZA612 2CPX031123R9999
To be used with UK62... 1 UZA624 2CPX031124R9999
To be used with UK63... 1 UZA636 2CPX031125R9999
To be used with UK64... 1 UZA648 2CPX031126R9999
To be used with UK66.. 1 UZA660 2CPX031127R9999

UZA636

Mounting plate, sheet steel, galvanised
To be used with UK61..., H x W = 212 x 242 mm 1 UZM610 2CPX031414R9999
To be used with UK62..., H x W = 337 x 242 mm 1 UZM620 2CPX031415R9999
To be used with UK63..., H x W = 462 x 242 mm 1 UZM630 2CPX031416R9999
To be used with UK64..., H x W = 587 x 242 mm 1 UZM640 2CPX031417R9999
UZM620 To be used with UK65..., H x W = 712 x 242 mm 1 UZM650 2CPX031418R9999

Hollow-wall-mounting set 4 UZ91P4 2CPX031434R9999
To modify the flush-mounting consumer unit into a
hollow-wall consumer unit UK600 (type label and 20 cable
ties included) wall thickness min. 8 mm, max. 35 mm

UZ91P4
Touch-up applicator 1 ZA120 2CPX039043R9999
Colour: RAL 9016, 12 ml

19
ZA120
Screws 1 ZA89P20 2CPX062376R9999
20 pcs. for fixing DIN rails and mounting plates
ZA89P20
