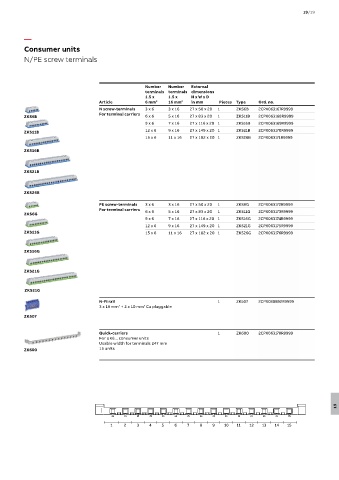

19/19

—
Consumer units
N/PE screw terminals

Number Number External
terminals terminals dimensions
1.5 x 1.5 x H x W x D
Article 6 mm 2 16 mm 2 in mm Pieces Type Ord. no.
N screw-terminals 3 x 6 3 x 16 27 x 50 x 20 1 ZKS6B 2CPX063167R9999
For terminal carriers
ZKS6B 6 x 6 5 x 16 27 x 83 x 20 1 ZKS11B 2CPX063168R9999
9 x 6 7 x 16 27 x 116 x 20 1 ZKS16B 2CPX063169R9999
ZKS11B 12 x 6 9 x 16 27 x 149 x 20 1 ZKS21B 2CPX063170R9999
15 x 6 11 x 16 27 x 182 x 20 1 ZKS26B 2CPX063171R9999
ZKS16B

ZKS21B

ZKS26B
PE screw-terminals 3 x 6 3 x 16 27 x 50 x 20 1 ZKS6G 2CPX063172R9999
For terminal carriers 6 x 6 5 x 16 27 x 83 x 20 1 ZKS11G 2CPX063173R9999
ZKS6G
9 x 6 7 x 16 27 x 116 x 20 1 ZKS16G 2CPX063174R9999
12 x 6 9 x 16 27 x 149 x 20 1 ZKS21G 2CPX063175R9999
ZKS11G 15 x 6 11 x 16 27 x 182 x 20 1 ZKS26G 2CPX063176R9999

ZKS16G

ZKS21G

ZKS21G

N-FI rail 1 ZK507 2CPX030892R9999
3 x 16 mm + 2 x 10 mm Cu pluggable
2
2
ZK507
Quick-carriers 1 ZK600 2CPX063178R9999
For UK6... consumer units
Usable width for terminals 247 mm
ZK600 15 units

19

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
