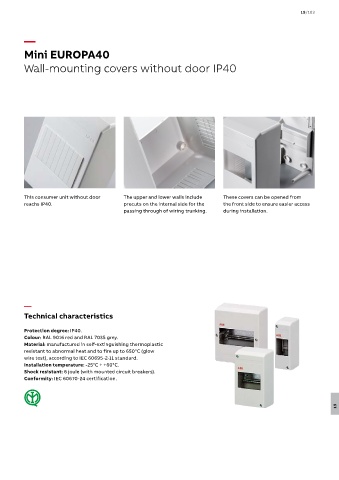

          Mini EUROPA40


          Wall-mounting covers without door IP40



























          This consumer unit without door   The upper and lower walls include   These covers can be opened from
          reachs IP40.                      precuts on the internal side for the   the front side to ensure easier access
                                            passing through of wiring trunking.  during installation.


















          —
          Technical characteristics


          Protection degree: IP40.
          Colour: RAL 9016 red and RAL 7035 grey.
          Material: manufactured in self-extinguishing thermoplastic
          resistant to abnormal heat and to fire up to 650°C (glow
          wire test), according to IEC 60695-2-11 standard.
          Installation temperature: -25°C ÷ +60°C.
          Shock resistant: 6 joule (with mounted circuit breakers).
          Conformity: IEC 60670-24 certification.
