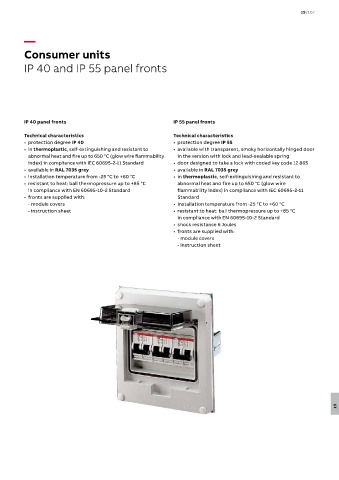

Page 2795 - Din prodcuts 2020

19/107

—

Consumer units

IP 40 and IP 55 panel fronts

IP 40 panel fronts IP 55 panel fronts

Technical characteristics Technical characteristics
• protection degree IP 40 • protection degree IP 55
• in thermoplastic, self-extinguishing and resistant to • available with transparent, smoky horizontally hinged door
abnormal heat and fire up to 650 °C (glow wire flammability in the version with lock and lead-sealable spring
index) in compliance with IEC 60695-2-11 Standard • door designed to take a lock with coded key code 12 865
• available in RAL 7035 grey • available in RAL 7035 grey
• installation temperature from -25 °C to +60 °C • in thermoplastic, self-extinguishing and resistant to
• resistant to heat: ball thermopressure up to +85 °C abnormal heat and fire up to 650 °C (glow wire
in compliance with EN 60695-10-2 Standard flammability index) in compliance with IEC 60695-2-11
• fronts are supplied with: Standard
- module covers • installation temperature from -25 °C to +60 °C
- instruction sheet • resistant to heat: ball thermopressure up to +85 °C
in compliance with EN 60695-10-2 Standard
• shock resistance 6 Joules
• fronts are supplied with:
- module covers
- instruction sheet

19
