21/21

—

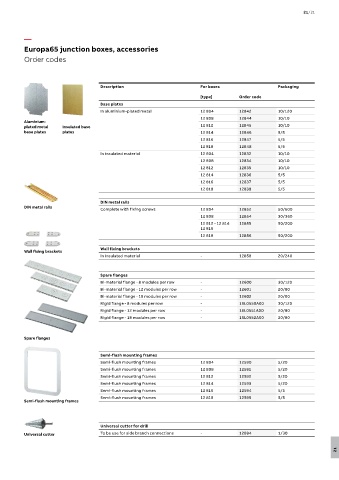

Europa65 junction boxes, accessories
Order codes

Description For boxes Packaging

[type] Order code
Base plates
In aluminium-plated metal 12 804 12842 10/120
12 808 12844 10/10
Aluminium-
plated metal Insulated base 12 812 12845 10/10
base plates plates 12 814 12846 5/5
12 816 12847 5/5
12 818 12848 5/5
In insulated material 12 804 12832 10/10
12 808 12834 10/10
12 812 12835 10/10
12 814 12836 5/5
12 816 12837 5/5
12 818 12838 5/5

DIN metal rails
DIN metal rails Complete with fixing screws 12 804 12852 50/600
12 808 12854 30/360
12 812 - 12 814 12855 50/200
12 816
12 818 12856 50/200

Wall fixing brackets
Wall fixing brackets
In insulated material - 12858 20/240

Spare flanges
Bi-material flange - 8 modules per row - 12600 30/120
Bi-material flange - 12 modules per row - 12601 20/80
Bi-material flange - 18 modules per row - 12602 20/80
Rigid flange - 8 modules per row - 1SL0550A00 30/120
Rigid flange - 12 modules per row - 1SL0551A00 20/80
Rigid flange - 18 modules per row - 1SL0552A00 20/80

Spare flanges

Semi-flush mounting frames
Semi-flush mounting frames 12 804 12590 5/20
Semi-flush mounting frames 12 808 12591 5/20
Semi-flush mounting frames 12 812 12592 5/20
Semi-flush mounting frames 12 814 12593 5/20
Semi-flush mounting frames 12 816 12594 5/5
Semi-flush mounting frames 12 818 12595 5/5
Semi-flush mounting frames

Universal cutter for drill
Universal cutter To be use for side branch connections - 12894 1/30

21
