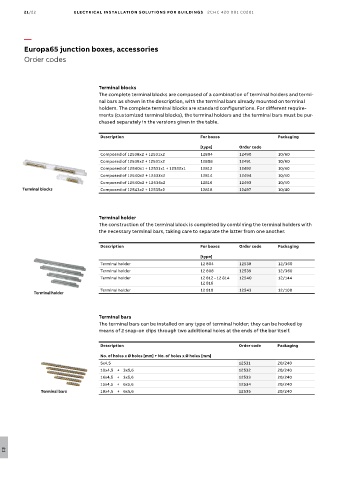

21/22 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Europa65 junction boxes, accessories
Order codes

Terminal blocks
The complete terminal blocks are composed of a combination of terminal holders and termi-
nal bars as shown in the description, with the terminal bars already mounted on terminal
holders. The complete terminal blocks are standard configurations. For different require-
ments (customized terminal blocks), the terminal holders and the terminal bars must be pur-
chased separately in the versions given in the table.

Description For boxes Packaging

[type] Order code
Composed of 12538x2 + 12531x2 12804 12490 10/60
Composed of 12539x2 + 12531x2 12808 12491 10/60
Composed of 12540x1 + 12531x1 + 12532x1 12812 12492 10/40
Composed of 12540x2 + 12533x2 12814 12494 10/40
Composed of 12540x2 + 12534x2 12816 12493 10/40
Terminal blocks Composed of 12543x2 + 12535x2 12818 12497 10/40

Terminal holder
The construction of the terminal block is completed by combining the terminal holders with
the necessary terminal bars, taking care to separate the latter from one another.

Description For boxes Order code Packaging

[type]
Terminal holder 12 804 12538 12/360
Terminal holder 12 808 12539 12/360
Terminal holder 12 812 - 12 814 12540 12/144
12 816
Terminal holder 12 818 12543 12/108
Terminal holder

Terminal bars
The terminal bars can be installed on any type of terminal holder; they can be hooked by
means of 2 snap-on clips through two additional holes at the ends of the bar itself.

Description Order code Packaging

No. of holes x Ø holes [mm] + No. of holes x Ø holes [mm]
5x4,5 12531 20/240
10x4,5 + 3x5,6 12532 20/240
16x4,5 + 3x5,6 12533 20/240
15x4,5 + 6x5,6 12534 20/240
Terminal bars 19x4,5 + 6x5,6 12535 20/240

21
