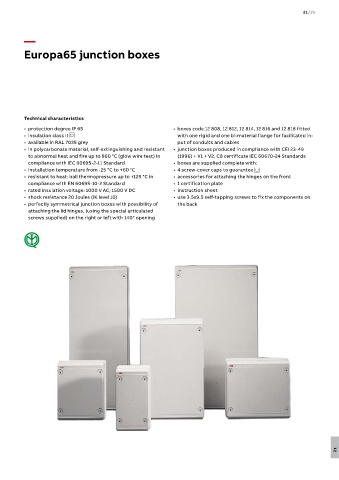

Europa65 junction boxes

Technical characteristics

• protection degree IP 65 • boxes code 12 808, 12 812, 12 814, 12 816 and 12 818 fitted
• insulation class II with one rigid and one bi-material flange for facilitated in-
• available in RAL 7035 grey put of conduits and cables
• in polycarbonate material, self-extinguishing and resistant • junction boxes produced in compliance with CEI 23-49
to abnormal heat and fire up to 960 °C (glow wire test) in (1996) + V1 + V2, CB certificate IEC 60670-24 Standards
compliance with IEC 60695-2-11 Standard • boxes are supplied complete with:
• installation temperature from -25 °C to +60 °C • 4 screw-cover caps to guarantee
• resistant to heat: ball thermopressure up to +125 °C in • accessories for attaching the hinges on the front
compliance with EN 60695-10-2 Standard • 1 certification plate
• rated insulation voltage: 1000 V AC; 1500 V DC • instruction sheet
• shock resistance 20 Joules (IK level 10) • use 3.5x9.5 self-tapping screws to fix the components on
• perfectly symmetrical junction boxes with possibility of the back
attaching the lid hinges, (using the special articulated
screws supplied) on the right or left with 140° opening
