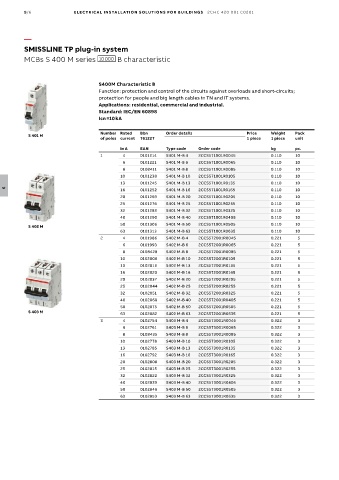

Page 836 - Din prodcuts 2020

9/6 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
SMISSLINE TP plug-in system
MCBs S 400 M series 10 000 B characteristic

S400M Characteristic B
Function: protection and control of the circuits against overloads and short-circuits;
protection for people and big length cables in TN and IT systems.
Applications: residential, commercial and industrial.
Standard: IEC/EN 60898
Icn =10 kA

Number Rated Bbn Order details Price Weight Pack
S 401 M
of poles current 761227 1 piece 1 piece unit
In A EAN Type code Order code kg pc.
1 4 0101214 S401 M-B 4 2CCS571001R0045 0.110 10
6 0101221 S401 M-B 6 2CCS571001R0065 0.110 10
8 0108411 S401 M-B 8 2CCS571001R0085 0.110 10
10 0101238 S401 M-B 10 2CCS571001R0105 0.110 10
13 0101245 S401 M-B 13 2CCS571001R0135 0.110 10
16 0101252 S401 M-B 16 2CCS571001R0165 0.110 10
9
20 0101269 S401 M-B 20 2CCS571001R0205 0.110 10
25 0101276 S401 M-B 25 2CCS571001R0255 0.110 10
32 0101283 S401 M-B 32 2CCS571001R0325 0.110 10
40 0101290 S401 M-B 40 2CCS571001R0405 0.110 10
50 0101306 S401 M-B 50 2CCS571001R0505 0.110 10
S 402 M
63 0101313 S401 M-B 63 2CCS571001R0635 0.110 10
2 4 0101986 S402 M-B 4 2CCS572001R0045 0.221 5
6 0101993 S402 M-B 6 2CCS572001R0065 0.221 5
8 0108428 S402 M-B 8 2CCS572001R0085 0.221 5
10 0102006 S402 M-B 10 2CCS572001R0105 0.221 5
13 0102013 S402 M-B 13 2CCS572001R0135 0.221 5
16 0102020 S402 M-B 16 2CCS572001R0165 0.221 5
20 0102037 S402 M-B 20 2CCS572001R0205 0.221 5
25 0102044 S402 M-B 25 2CCS572001R0255 0.221 5
32 0102051 S402 M-B 32 2CCS572001R0325 0.221 5
40 0102068 S402 M-B 40 2CCS572001R0405 0.221 5
50 0102075 S402 M-B 50 2CCS572001R0505 0.221 5
S 403 M 63 0102082 S402 M-B 63 2CCS572001R0635 0.221 5
3 4 0102754 S403 M-B 4 2CCS573001R0045 0.322 3
6 0102761 S403 M-B 6 2CCS573001R0065 0.322 3
8 0108435 S403 M-B 8 2CCS573001R0085 0.322 3
10 0102778 S403 M-B 10 2CCS573001R0105 0.322 3
13 0102785 S403 M-B 13 2CCS573001R0135 0.322 3
16 0102792 S403 M-B 16 2CCS573001R0165 0.322 3
20 0102808 S403 M-B 20 2CCS573001R0205 0.322 3
25 0102815 S403 M-B 25 2CCS573001R0255 0.322 3
32 0102822 S403 M-B 32 2CCS573001R0325 0.322 3
40 0102839 S403 M-B 40 2CCS573001R0405 0.322 3
50 0102846 S403 M-B 50 2CCS573001R0505 0.322 3
63 0102853 S403 M-B 63 2CCS573001R0635 0.322 3
