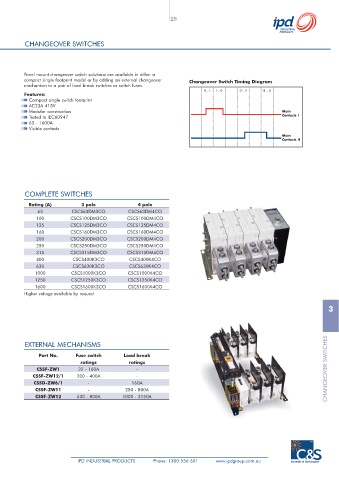

Page 21 - Panel_mount_Switches

19

CHANGEOVER SWITCHES

Panel mount changeover switch solutions are available in either a
compact single footprint model or by adding an external changeover Changeover Switch Timing Diagram
mechanism to a pair of load break switches or switch fuses.
0 - I I - 0 0 - II II - 0
Features:
» » Compact single switch footprint
»»
»»
» » AC23A 415V
» » Modular construction Main
»»
»»
» » Tested to IEC60947 Contacts I
»»
» » 63 - 1600A
» » Visible contacts
»»
Main
Contacts II

COMPLETE SWITCHES
Rating (A) 3 pole 4 pole
63 CSCS63DM3CO CSCS63DM4CO
100 CSCS100DM3CO CSCS100DM4CO
125 CSCS125DM3CO CSCS125DM4CO
160 CSCS160DM3CO CSCS160DM4CO
200 CSCS200DM3CO CSCS200DM4CO
250 CSCS250DM3CO CSCS250DM4CO
315 CSCS315DM3CO CSCS315DM4CO
400 CSCS400K3CO CSCS400K4CO
630 CSCS630K3CO CSCS630K4CO
1000 CSCS1000K3CO CSCS1000K4CO
1250 CSCS1250K3CO CSCS1250K4CO
1600 CSCS1600K3CO CSCS1600K4CO
Higher ratings available by request

3

EXTERNAL MECHANISMS
Part No. Fuse switch Load break
ratings ratings
CSSF-ZW1 32 - 160A - CHANGEOVER SWITCHES
CSSF-ZW12/1 200 - 400A -
CSSD-ZW6/1 - 160A
CSSF-ZW11 - 250 - 800A
CSSF-ZW12 630 - 800A 1000 - 3150A
