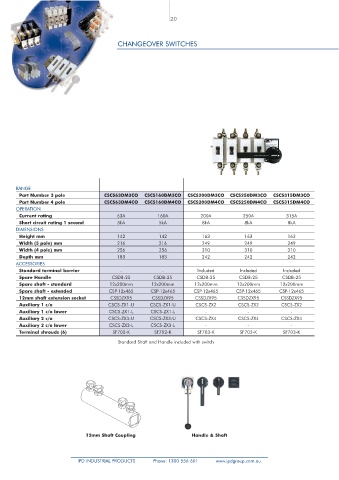

Page 22 - Panel_mount_Switches

20

CHANGEOVER SWITCHES

RANGE
Part Number 3 pole CSCS63DM3CO CSCS160DM3CO CSCS200DM3CO CSCS250DM3CO CSCS315DM3CO
Part Number 4 pole CSCS63DM4CO CSCS160DM4CO CSCS200DM4CO CSCS250DM4CO CSCS315DM4CO
OPERATION
Current rating 63A 160A 200A 250A 315A
Short circuit rating 1 second 5kA 5kA 8kA 8kA 8kA
DIMENSIONS
Height mm 142 142 163 163 163
Width (3 pole) mm 216 216 249 249 249
Width (4 pole) mm 256 256 310 310 310
Depth mm 183 183 242 242 242
ACCESSORIES
Standard terminal barrier - - Included Included Included
Spare Handle CSDB-25 CSDB-25 CSDB-25 CSDB-25 CSDB-25
Spare shaft - standard 12x200mm 12x200mm 12x200mm 12x200mm 12x200mm
Spare shaft - extended CSP-12x465 CSP-12x465 CSP-12x465 CSP-12x465 CSP-12x465
12mm shaft extension socket CSSDZX95 CSSDZX95 CSSDZX95 CSSDZX95 CSSDZX95
Auxiliary 1 c/o CSCS-ZX1-U CSCS-ZX1-U CSCS-ZX2 CSCS-ZX2 CSCS-ZX2
Auxiliary 1 c/o lower CSCS-ZX1-L CSCS-ZX1-L - - -
Auxiliary 2 c/o CSCS-ZX3-U CSCS-ZX3-U CSCS-ZX4 CSCS-ZX4 CSCS-ZX4
Auxiliary 2 c/o lower CSCS-ZX3-L CSCS-ZX3-L - - -
Terminal shrouds (6) SF702-K SF702-K SF703-K SF703-K SF703-K
Standard Shaft and Handle included with switch

12mm Shaft Coupling Handle & Shaft

IPD INDUSTRIAL PRODUCTS Phone: 1300 556 601 www.ipdgroup.com.au
