24

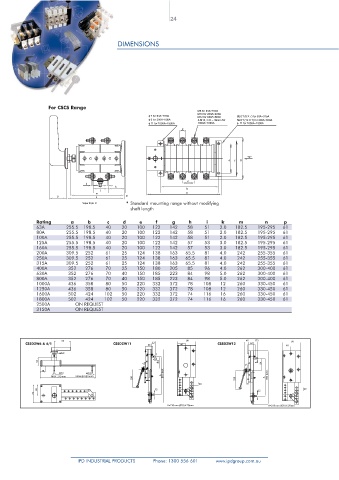

DIMENSIONS

*
* Standard mounting range without modifying
shaft length

Rating a b c d e f g h i k m n p
63A 255.5 198.5 40 20 100 122 142 58 51 2.0 182.5 195-295 61
80A 255.5 198.5 40 20 100 122 142 58 51 2.0 182.5 195-295 61
100A 255.5 198.5 40 20 100 122 142 58 51 2.0 182.5 195-295 61
125A 255.5 198.5 40 20 100 122 142 57 53 3.0 182.5 195-295 61
160A 255.5 198.5 40 20 100 122 142 57 53 3.0 182.5 195-295 61
200A 309.5 252 61 25 124 138 163 65.5 81 4.0 242 255-355 61
250A 309.5 252 61 25 124 138 163 65.5 81 4.0 242 255-355 61
315A 309.5 252 61 25 124 138 163 65.5 81 4.0 242 255-355 61
400A 352 276 70 25 150 180 205 85 96 4.0 262 300-400 61
630A 352 276 70 40 150 185 223 84 98 5.0 262 300-400 61
800A 352 276 70 40 150 185 223 84 98 5.0 262 300-400 61
1000A 436 358 80 50 220 332 372 78 108 12 260 330-450 61
1250A 436 358 80 50 220 332 372 78 108 12 260 330-450 61
1600A 502 424 102 50 220 332 372 74 116 16 260 330-450 61
1800A 502 424 102 50 220 332 372 74 116 16 260 330-450 61
2500A ON REQUEST
3150A ON REQUEST
