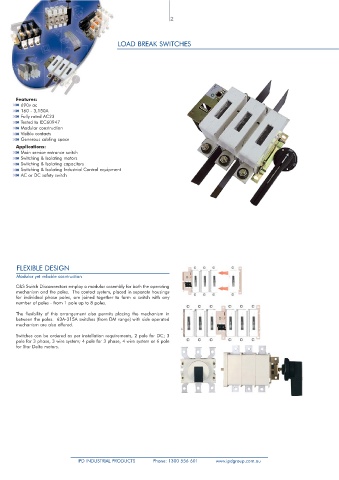

LOAD BREAK SWITCHES

Features:
» » 690v ac
»»
» » 160 - 3,150A
»»
» » Fully rated AC23
»»
» » Tested to IEC60947
»»
» » Modular construction
»»
» » Visible contacts
»»
» » Generous cabling space
»»
Applications:
»»
» » Main service entrance switch
»»
» » Switching & Isolating motors
» » Switching & Isolating capacitors
»»
» » Switching & Isolating Industrial Control equipment
»»
»»
» » AC or DC safety switch

FLEXIBLE DESIGN
Modular yet reliable cosntruction
C&S Switch Disconnectors employ a modular assembly for both the operating
mechanism and the poles. The contact system, placed in separate housings
for individual phase poles, are joined together to form a switch with any
number of poles - from 1 pole up to 8 poles.
The flexibility of this arrangement also permits placing the mechanism in
between the poles. 63A-315A switches (from DM range) with side operated
mechanism are also offered.

Switches can be ordered as per installation requirements, 2 pole for DC; 3
pole for 3 phase, 3 wire system; 4 pole for 3 phase, 4 wire system or 6 pole
for Star Delta motors.
