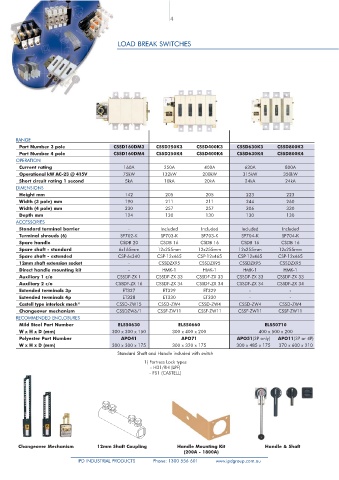

4

LOAD BREAK SWITCHES

RANGE
Part Number 3 pole CSSD160DM3 CSSD250K3 CSSD400K3 CSSD630K3 CSSD800K3
Part Number 4 pole CSSD160DM4 CSSD250K4 CSSD400K4 CSSD630K4 CSSD800K4
OPERATION
Current rating 160A 250A 400A 630A 800A
Operational kW AC-23 @ 415V 75kW 132kW 200kW 315kW 350kW
Short circuit rating 1 second 5kA 10kA 20kA 24kA 24kA
DIMENSIONS
Height mm 142 205 205 223 223
Width (3 pole) mm 190 211 211 244 260
Width (4 pole) mm 230 257 257 306 330
Depth mm 124 130 130 130 130
ACCESSORIES
Standard terminal barrier - Included Included Included Included
Terminal shrouds (6) SF702-K SF703-K SF703-K SF704-K SF704-K
Spare handle CSDB 20 CSDB 16 CSDB 16 CSDB 16 CSDB 16
Spare shaft - standard 6x165mm 12x255mm 12x255mm 12x255mm 12x255mm
Spare shaft - extended CSP-6x340 CSP-12x465 CSP-12x465 CSP-12x465 CSP-12x465
12mm shaft extension socket - CSSDZX95 CSSDZX95 CSSDZX95 CSSDZX95
Direct handle mounting kit - HMK-1 HMK-1 HMK-1 HMK-1
Auxiliary 1 c/o CSSDF-ZX 1 CSSDF-ZX 33 CSSDF-ZX 33 CSSDF-ZX 33 CSSDF-ZX 33
Auxiliary 2 c/o CSSDF-ZX 16 CSSDF-ZX 34 CSSDF-ZX 34 CSSDF-ZX 34 CSSDF-ZX 34
Extended terminals 3p ET327 ET329 ET329 - -
Extended terminals 4p ET328 ET330 ET330 - -
Castell type interlock mech 1) CSSD-ZW15 CSSD-ZW4 CSSD-ZW4 CSSD-ZW4 CSSD-ZW4
Changeover mechanism CSSDZW6/1 CSSF-ZW11 CSSF-ZW11 CSSF-ZW11 CSSF-ZW11
RECOMMENDED ENCLOSURES
Mild Steel Part Number ELS50630 ELS50660 ELS50710
W x H x D (mm) 300 x 300 x 150 300 x 400 x 200 400 x 500 x 200
Polyester Part Number APO41 APO71 APO51(3P only) APO11(3P or 4P)
W x H x D (mm) 300 x 300 x 175 300 x 320 x 175 300 x 485 x 175 370 x 600 x 210
Standard Shaft and Handle included with switch
1) Fortress Lock types
- H31/RH (LPF)
- FS1 (CASTELL)

Changeover Mechanism 12mm Shaft Coupling Handle Mounting Kit Handle & Shaft
(200A - 1800A)
