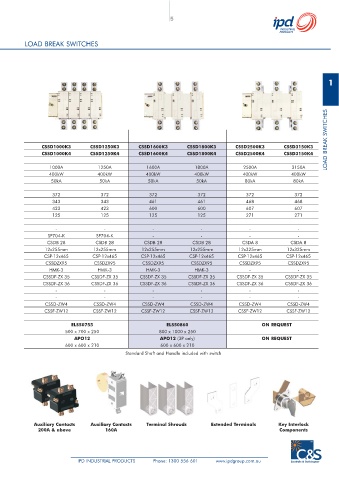

LOAD BREAK SWITCHES

1

LOAD BREAK SWITCHES

CSSD1000K3 CSSD1250K3 CSSD1600K3 CSSD1800K3 CSSD2500K3 CSSD3150K3
CSSD1000K4 CSSD1250K4 CSSD1600K4 CSSD1800K4 CSSD2500K4 CSSD3150K4

1000A 1250A 1600A 1800A 2500A 3150A
400kW 400kW 400kW 400kW 400kW 400kW
50kA 50kA 50kA 50kA 80kA 80kA

372 372 372 372 372 372
343 343 461 461 468 468
423 423 600 600 607 607
125 125 125 125 271 271

- - - - - -
SF704-K SF704-K - - - -
CSDB 28 CSDB 28 CSDB 28 CSDB 28 CSDA 8 CSDA 8
12x255mm 12x255mm 12x255mm 12x255mm 12x325mm 12x325mm
CSP-12x465 CSP-12x465 CSP-12x465 CSP-12x465 CSP-12x465 CSP-12x465
CSSDZX95 CSSDZX95 CSSDZX95 CSSDZX95 CSSDZX95 CSSDZX95
HMK-3 HMK-3 HMK-3 HMK-3 - -
CSSDF-ZX 35 CSSDF-ZX 35 CSSDF-ZX 35 CSSDF-ZX 35 CSSDF-ZX 35 CSSDF-ZX 35
CSSDF-ZX 36 CSSDF-ZX 36 CSSDF-ZX 36 CSSDF-ZX 36 CSSDF-ZX 36 CSSDF-ZX 36
- - - - - -
- - - - - -
CSSD-ZW4 CSSD-ZW4 CSSD-ZW4 CSSD-ZW4 CSSD-ZW4 CSSD-ZW4
CSSF-ZW12 CSSF-ZW12 CSSF-ZW12 CSSF-ZW12 CSSF-ZW12 CSSF-ZW12
ELS50755 ELS50860 ON REQUEST
500 x 700 x 250 800 x 1000 x 250
APO12 APO12 (3P only) ON REQUEST
600 x 600 x 210 600 x 600 x 210
Standard Shaft and Handle included with switch

Auxiliary Contacts Auxiliary Contacts Terminal Shrouds Extended Terminals Key Interlock
200A & above 160A Components
