12 SACE TMA X XT MOLDED C ASE CIRCUIT-BRE AKERS (MCCBS)

—

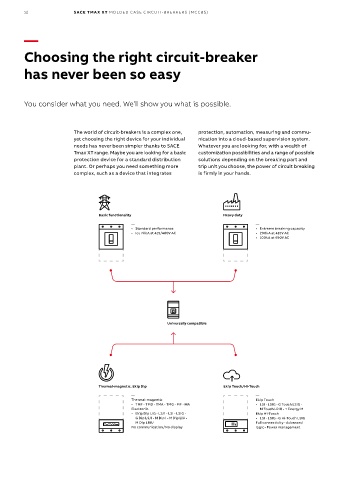

Choosing the right circuit-breaker

has never been so easy

You consider what you need. We’ll show you what is possible.

The world of circuit-breakers is a complex one, protection, automation, measuring and commu-
yet choosing the right device for your individual nication into a cloud-based supervision system.
needs has never been simpler thanks to SACE Whatever you are looking for, with a wealth of
Tmax XT range. Maybe you are looking for a basic customization possibilities and a range of possible
protection device for a standard distribution solutions depending on the breaking part and
plant. Or perhaps you need something more trip unit you choose, the power of circuit breaking
complex, such as a device that integrates is firmly in your hands.

Basic functionality Heavy duty
— —
• Standard performance • Extreme breaking capacity
• Icu 70kA at 415/480V AC • 200kA at 415V AC
• 100kA at 690V AC

Universally compatible

Thermal-magnetic, Ekip Dip Ekip Touch/Hi-Touch
— —
Thermal-magnetic Ekip Touch
• TMF - TMD - TMA - TMG - MF - MA • LSI - LSIG - G Touch LSIG -
Electronic M Touch LRIU - + Energy M
• Ekip Dip LIG - LS/I - LSI - LSIG - Ekip Hi-Touch
G Dip LS/I - M Dip I - M Dip LIU - • LSI - LSIG - G Hi-Touch LSIG
M Dip LRIU Full connectivity - Advanced
No communication/No display logic - Power management
