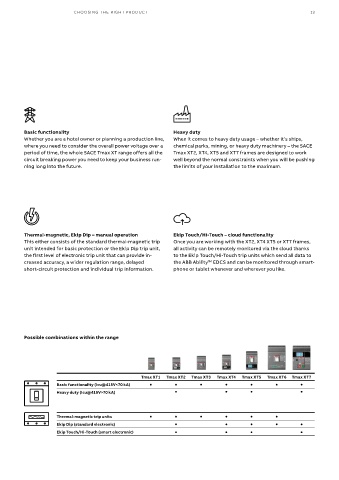

CHOOSING THE RIGHT PRODUCT 1 13 3

Basic functionality Heavy duty
Whether you are a hotel owner or planning a production line, When it comes to heavy duty usage – whether it’s ships,
where you need to consider the overall power voltage over a chemical parks, mining, or heavy duty machinery – the SACE
period of time, the whole SACE Tmax XT range offers all the Tmax XT2, XT4, XT5 and XT7 frames are designed to work
circuit breaking power you need to keep your business run- well beyond the normal constraints when you will be pushing
ning long into the future. the limits of your installation to the maximum.

Thermal-magnetic, Ekip Dip – manual operation Ekip Touch/Hi-Touch – cloud functionality
This either consists of the standard thermal-magnetic trip Once you are working with the XT2, XT4 XT5 or XT7 frames,
unit intended for basic protection or the Ekip Dip trip unit, all activity can be remotely monitored via the cloud thanks
the first level of electronic trip unit that can provide in- to the Ekip Touch/Hi-Touch trip units which send all data to
TM
creased accuracy, a wider regulation range, delayed the ABB Ability EDCS and can be monitored through smart-
short-circuit protection and individual trip information. phone or tablet whenever and wherever you like.

Possible combinations within the range

Tmax XT1 Tmax XT2 Tmax XT3 Tmax XT4 Tmax XT5 Tmax XT6 Tmax XT7
Basic functionality (Icu@415V<70 kA)
Heavy duty (Icu@415V>70 kA)

Thermal-magnetic trip units
Ekip Dip (standard electronic)
Ekip Touch/Hi-Touch (smart electronic)
