ACCESSORIES 15
5
12
20
11
21
10
6
7 19
1
22
23
8 3
18
4
13
14 2
15
24
16 9
17
5

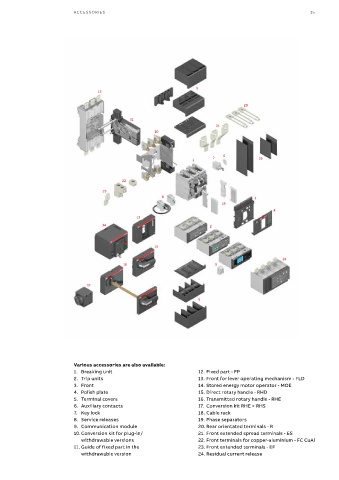

Various accessories are also available:
1. Breaking unit 12. Fixed part - FP
2. Trip units 13. Front for lever operating mechanism - FLD
3. Front 14. Stored energy motor operator - MOE
4. Polish plate 15. Direct rotary handle - RHD
5. Terminal covers 16. Transmitted rotary handle - RHE
6. Auxiliary contacts 17. Conversion kit RHE > RHS
7. Key lock 18. Cable rack
8. Service releases 19. Phase separators
9. Communication module 20. Rear orientated terminals - R
10. Conversion kit for plug-in/ 21. Front extended spread terminals - ES
withdrawable versions 22. Front terminals for copper-aluminium - FC CuAl
11. Guide of fixed part in the 23. Front extended terminals - EF
withdrawable version 24. Residual current release
