ABB | SACE Emax 2

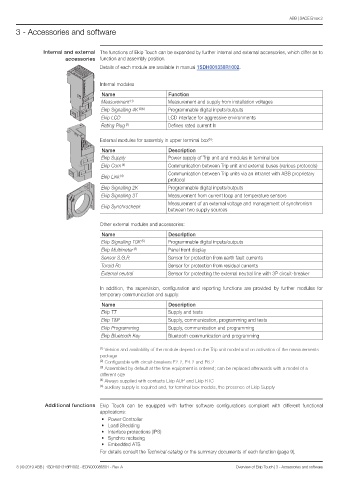

       3 - Accessories and software



                Internal and external  The functions of Ekip Touch can be expanded by further internal and external accessories, which differ as to
                        accessories function and assembly position.
                                    Details of each module are available in manual 1SDH001330R1002.

                                    Internal modules
                                     Name                   Function
                                     Measurement  (1)       Measurement and supply from installation voltages
                                     Ekip Signalling 4K  (2)(5)  Programmable digital inputs/outputs
                                     Ekip LCD               LCD interface for aggressive environments
                                     Rating Plug  (3)       Defines rated current In

                                    External modules for assembly in upper terminal box :
                                                                          (5)
                                     Name                   Description
                                     Ekip Supply            Power supply of Trip unit and modules in terminal box
                                     Ekip Com  (4)          Communication between Trip unit and external buses (various protocols)
                                                            Communication between Trip units via an intranet with ABB proprietary
                                     Ekip Link  (4)
                                                            protocol
                                     Ekip Signalling 2K     Programmable digital inputs/outputs
                                     Ekip Signalling 3T     Measurement from current loop and temperature sensors
                                                            Measurement of an external voltage and management of synchronism
                                     Ekip Synchrocheck
                                                            between two supply sources
                                    Other external modules and accessories:

                                     Name                   Description
                                     Ekip Signalling 10K  (5)  Programmable digital inputs/outputs
                                     Ekip Multimeter  (5)   Panel front display
                                     Sensor S.G.R.          Sensor for protection from earth fault currents
                                     Toroid Rc              Sensor for protection from residual currents
                                     External neutral       Sensor for protecting the external neutral line with 3P circuit-breaker

                                    In addition, the supervision, configuration and reporting functions are provided by further modules for
                                    temporary communication and supply:
                                     Name                   Description
                                     Ekip TT                Supply and tests
                                     Ekip T&P               Supply, communication, programming and tests
                                     Ekip Programming       Supply, communication and programming
                                     Ekip Bluetooth Key     Bluetooth communication and programming

                                    (1)  Version and availability of the module depend on the Trip unit model and on activation of the measurements
                                    package
                                    (2)  Configurable with circuit-breakers E2.2, E4.2 and E6.2
                                    (3)  Assembled by default at the time equipment is ordered; can be replaced afterwards with a model of a
                                    different size
                                    (4)  Always supplied with contacts Ekip AUP and Ekip RTC
                                    (5)  auxiliary supply is required and, for terminal box models, the presence of Ekip Supply


                 Additional functions Ekip Touch can be equipped with further software configurations compliant with different functional
                                    applications:
                                     •  Power Controller
                                     •  Load Shedding
                                     •  Interface protections (IPS)
                                     •  Synchro reclosing
                                     •  Embedded ATS
                                    For details consult the Technical catalog or the summary documents of each function (page 9).

       8 | © 2019 ABB |  1SDH001316R1002 - ECN000086501 - Rev. A                    Overview of Ekip Touch | 3 - Accessories and software
