OVER ALL DIMENSIONS 2/229

—

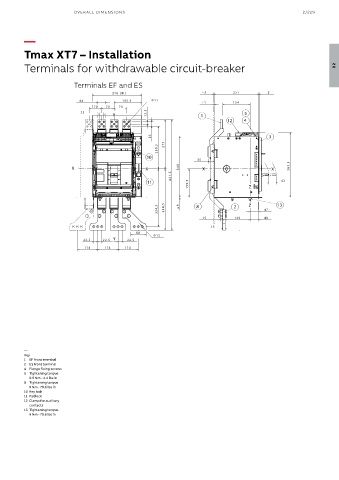

Tmax XT7 – Installation

Terminals for withdrawable circuit-breaker 02

Terminals EF and ES

—
Key
1 EF front terminal
2 ES front terminal
4 Flange fixing screws
5 Tightening torque
0.5 Nm - 4.4 lbs in
8 Tightening torque
9 Nm - 79.6 lbs in
10 Key lock
11 Padlock
12 Clamp for auxiliary
contacts
13 Tightening torque
9 Nm - 79.6 lbs in
