2/228 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

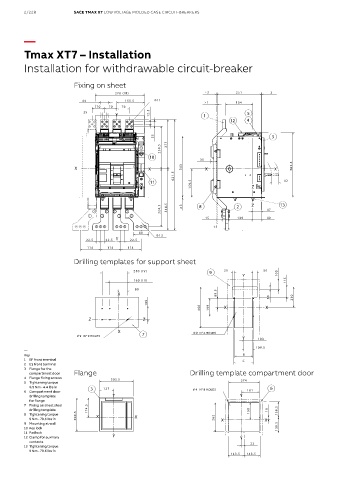

Tmax XT7 – Installation

Installation for withdrawable circuit-breaker

Fixing on sheet

Drilling templates for support sheet

N° 4 HOLES
N° 9 HOLES
—
Key
1 EF front terminal
2 ES front terminal
3 Flange for the
compartment door Flange Drilling template compartment door
4 Flange fixing screws
5 Tightening torque
0.5 Nm - 4.4 lbs in
6 Compartment door N° 8 HOLES
drilling template
for flange
7 Fixing on sheet steel
drilling template
8 Tightening torque
9 Nm - 79.6 lbs in
9 Mounting at wall
10 Key lock
11 Padlock
12 Clamp for auxiliary
contacts
13 Tightening torque
9 Nm - 79.6 lbs in
