Page 311 - SACE Tmax XT - Technical Catalogue
P. 311

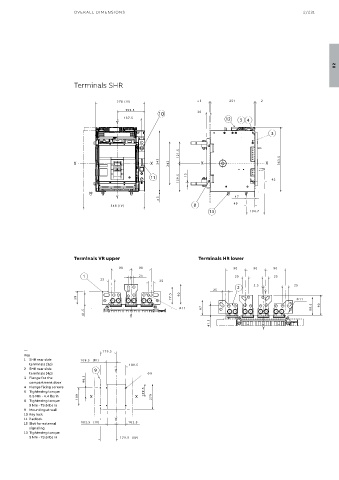

OVER ALL DIMENSIONS 2/231
02
Terminals SHR
Terminals VR upper Terminals HR lower
—
Key
1 SHR rear side
terminals (3p)
2 SHR rear side
terminals (4p)
3 Flange for the
compartment door
4 Flange fixing screws
5 Tightening torque
0.5 Nm - 4.4 lbs in
8 Tightening torque
9 Nm - 79.6 lbs in
9 Mounting at wall
10 Key lock
11 Padlock
12 Slot for external
signaling
13 Tightening torque
9 Nm - 79.6 lbs in
