3/30 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

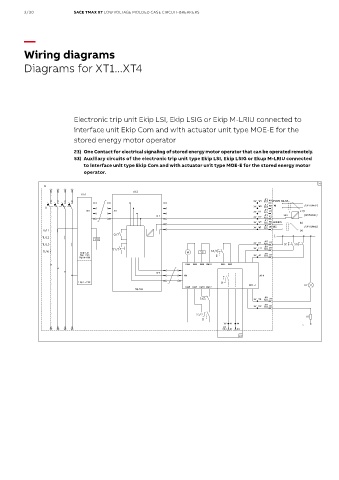

Wiring diagrams

Diagrams for XT1...XT4

Electronic trip unit Ekip LSI, Ekip LSIG or Ekip M-LRIU connected to

interface unit Ekip Com and with actuator unit type MOE-E for the
stored energy motor operator

23) One Contact for electrical signaling of stored energy motor operator that can be operated remotely.
53) Auxiliary circuits of the electronic trip unit type Ekip LSI, Ekip LSIG or Ekup M-LRIU connected
to interface unit type Ekip Com and with actuator unit type MOE-E for the stored energy motor
operator.
