WIRING DIAGR AMS 3/31
03
Auxiliary circuits of the electronic trip unit Ekip M-LRIU connected to
the contactor control unit for starting the motor PR212/CI (the circuit
to the motor thermistor is optional)

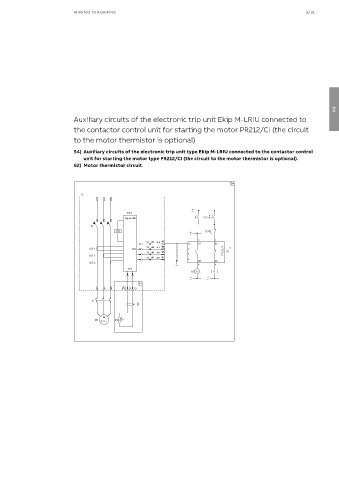

54) Auxiliary circuits of the electronic trip unit type Ekip M-LRIU connected to the contactor control
unit for starting the motor type PR212/CI (the circuit to the motor thermistor is optional).
62) Motor thermistor circuit.
