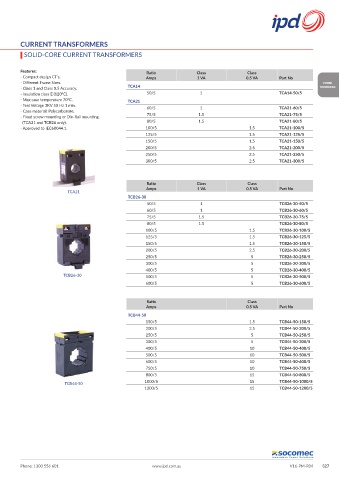

CURRENT TRANSFORMERS
SOLID-CORE CURRENT TRANSFORMERS

Features: Ratio Class Class
- Compact design CT's. Amps 1 VA 0.5 VA Part No
- Different Frame Sizes. POWER
- Class 1 and Class 0.5 Accuracy. TCA14 MONITORING
- Insulation class E (120ºC). 50/5 1 TCA14-50/5
- Max case temperature 70ºC. TCA21
- Test Voltage 3KV 50 Hz 1 min. 60/5 1 TCA21-60/5
- Case material: Polycarbonate.
- Fixed screw mounting or Din-Rail mounting. 75/5 1.5 TCA21-75/5
(TCA21 and TCB26 only). 80/5 1.5 TCA21-80/5
- Approved to IEC60044.1. 100/5 1.5 TCA21-100/5
125/5 1.5 TCA21-125/5
150/5 1.5 TCA21-150/5
200/5 2.5 TCA21-200/5
250/5 2.5 TCA21-250/5
300/5 2.5 TCA21-300/5

Ratio Class Class
Amps 1 VA 0.5 VA Part No
TCA21
TCB26-30
50/5 1 TCB26-30-50/5
60/5 1 TCB26-30-60/5
75/5 1.5 TCB26-30-75/5
80/5 1.5 TCB26-30-80/5
100/5 1.5 TCB26-30-100/5
125/5 1.5 TCB26-30-125/5
150/5 1.5 TCB26-30-150/5
200/5 2.5 TCB26-30-200/5
250/5 5 TCB26-30-250/5
300/5 5 TCB26-30-300/5
400/5 5 TCB26-30-400/5
TCB26-30 500/5 5 TCB26-30-500/5
600/5 5 TCB26-30-600/5

Ratio Class
Amps 0.5 VA Part No
TCB44-50
150/5 1.5 TCB44-50-150/5
200/5 2.5 TCB44-50-200/5
250/5 5 TCB44-50-250/5
300/5 5 TCB44-50-300/5
400/5 10 TCB44-50-400/5
500/5 10 TCB44-50-500/5
600/5 10 TCB44-50-600/5
750/5 10 TCB44-50-750/5
800/5 15 TCB44-50-800/5
TCB44-50 1000/5 15 TCB44-50-1000/5
1200/5 15 TCB44-50-1200/5
