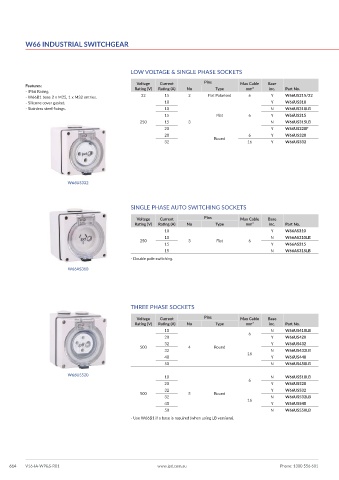

Page 622 - V16 Catalogue Final

W66 INDUSTRIAL SWITCHGEAR

LOW VOLTAGE & SINGLE PHASE SOCKETS

Voltage
Current
Features: Rating (V) Rating (A) No Pins Type Max Cable Base Part No.
mm²
inc.
- IP66 Rating.
- W66B1 base 2 x M25, 1 x M32 entries. 32 15 2 Flat Polarised 6 Y W66US215/32
- Silicone cover gasket. 10 Y W66US310
- Stainless steel fixings. 10 N W66US310LB
15 Flat 6 Y W66US315
250 15 3 N W66US315LB
20 Y W66US320F
20 Round 6 Y W66US320
32 16 Y W66US332

W66US332

SINGLE PHASE AUTO SWITCHING SOCKETS

Voltage Current Pins Max Cable Base
Rating (V) Rating (A) No Type mm² inc. Part No.
10 Y W66AS310
10 N W66AS310LB
250 3 Flat 6
15 Y W66AS315
15 N W66AS315LB
- Double pole switching.
W66AS310

THREE PHASE SOCKETS

Voltage Current Pins Max Cable Base
Rating (V) Rating (A) No Type mm² inc. Part No.
10 6 N W66US410LB
20 Y W66US420
32 Y W66US432
500 4 Round
32 16 N W66US432LB
40 Y W66US440
50 N W66US450LB

W66US520 10 N W66US510LB
20 6 Y W66US520
32 Y W66US532
500 5 Round
32 N W66US532LB
40 16 Y W66US540
50 N W66US550LB
- Use W66B1 if a base is required (when using LB versions).
