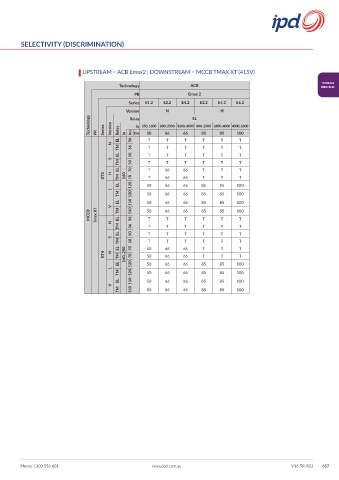

SELECTIVITY (DISCRIMINATION)

UPSTREAM – ACB Emax2 | DOWNSTREAM – MCCB TMAX XT (415V)

TECHNICAL
Technology ACB RESOURCES
PR Emax 2
Series E1.2 E2.2 E4.2 E2.2 E4.2 E6.2
Version N H
Technology PR Series Version Relay Relay 50 800..2500 3200..4000 800..2500 3200..4000 4000..6300
EL
lu 250..1600
66
Icw
Icu
85
100
66
85
EL Iu 36 T T T T T T
N
TM 36 T T T T T T
EL 50 T T T T T T
S
TM 50 T T T T T T
EL 70 T 66 66 T T T
XT2 H TM 160 70 T 66 66 T T T
EL 120 50 66 66 85 85 100
L
TM 120 50 66 66 85 85 100
EL 150 50 66 66 85 85 100
V 50 66 66 85 85 100
MCCB Tmax XT TM EL 150 36 T T T T T T
N
TM 36 T T T T T T
EL 50 T T T T T T
S
TM 50 T T T T T T
EL 70 50 66 66 T T T
XT4 H TM 160..250 70 50 66 66 T T T
EL 120 50 66 66 85 85 100
L
TM 120 50 66 66 85 85 100
EL 150 50 66 66 85 85 100
V
TM 150 50 66 66 85 85 100
