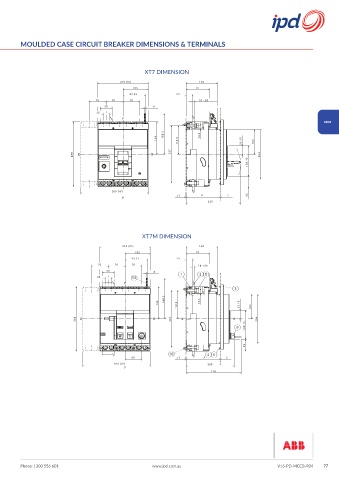

MOULDED CASE CIRCUIT BREAKER DIMENSIONS & TERMINALS




                                                    XT7 DIMENSION









                                                                                                                   MCCB























                                                   XT7M DIMENSION
