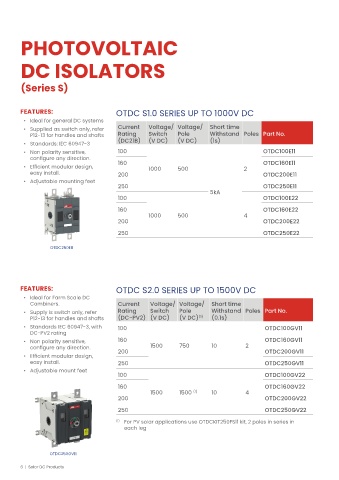

Page 6 - Solar DC Products

PHOTOVOLTAIC

DC ISOLATORS

(Series S)

FEATURES: OTDC S1.0 SERIES UP TO 1000V DC
• Ideal for general DC systems
Current Voltage/ Voltage/ Short time
• Supplied as switch only, refer
P12-13 for handles and shafts Rating Switch Pole Withstand Poles Part No.
(DC21B) (V DC) (V DC) (1s)
• Standards: IEC 60947-3
• Non polarity sensitive, 100 OTDC100E11
configure any direction.
160 OTDC160E11
• Efficient modular design,
1000 500 2
easy install.
200 OTDC200E11
• Adjustable mounting feet
250 OTDC250E11
5kA
100 OTDC100E22

160 OTDC160E22
1000 500 4
200 OTDC200E22

250 OTDC250E22

OTDC250E11

FEATURES: OTDC S2.0 SERIES UP TO 1500V DC
• Ideal for Farm Scale DC
Combiners. Current Voltage/ Voltage/ Short time
• Supply is switch only, refer Rating Switch Pole Withstand Poles Part No.
P12-13 for handles and shafts (DC-PV2) (V DC) (V DC) (1) (0.1s)
• Standards IEC 60947-3, with 100 OTDC100GV11
DC-PV2 rating
• Non polarity sensitive, 160 OTDC160GV11
1500 750 10 2
configure any direction.
200 OTDC200GV11
• Efficient modular design,
easy install. 250 OTDC250GV11
• Adjustable mount feet
100 OTDC100GV22
160 OTDC160GV22
1500 1500 (1) 10 4
200 OTDC200GV22

250 OTDC250GV22
(1) For PV solar applications use OTDCKIT250FS11 kit, 2 poles in series in
each leg

OTDC250GV11
