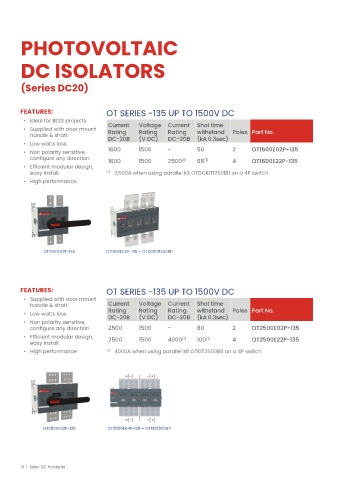

Page 10 - Solar DC Products

PHOTOVOLTAIC

DC ISOLATORS

(Series DC20)

FEATURES: OT SERIES -135 UP TO 1500V DC
• Ideal for BESS projects
Current Voltage Current Shot time
• Supplied with door mount
Rating Rating Rating withstand Poles Part No.
handle & shaft.
DC-20B (V DC) DC-20B (kA 0.3sec)
• Low watts loss.
1600 1500 - 50 2 OT1600E02P-135
• Non polarity sensitive,
configure any direction.
1600 1500 2500 (1) 65 (1) 4 OT1600E22P-135
• Efficient modular design,
easy install. (1) 2,500A when using parallel kit OTDCKIT1250B11 on a 4P switch
• High performance.

OT1600E02P-135 OT1600E02P-135 + OTDCKIT1250B11

FEATURES: OT SERIES -135 UP TO 1500V DC
• Supplied with door mount
handle & shaft. Current Voltage Current Shot time
Rating Rating Rating withstand Poles Part No.
• Low watts loss.
DC-20B (V DC) DC-20B (kA 0.3sec)
• Non polarity sensitive,
configure any direction. 2500 1500 - 80 2 OT2500E02P-135
• Efficient modular design, 2500 1500 4000 (1) 100 (1) 4 OT2500E22P-135
easy install.
• High performance (1) 4000A when using parallel kit OTKIT2500B11 on a 4P switch

+(–) –(+)

+(–) –(+)
OT2500E02P-135 OT2500E04P-135 + OTKIT2500B11
