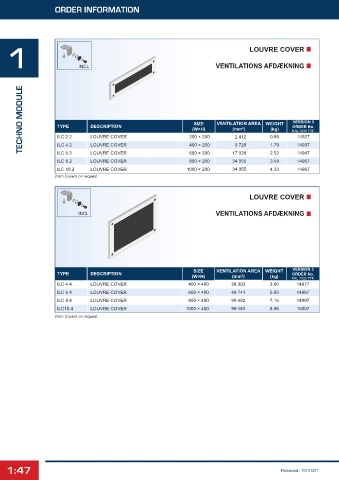

Page 47 - Elsteel Constructor Catalogue

ORDER INFORMATION

1 INCL VENTILATIONS AFDÆKNING
LOUVRE COVER

TECHNO MODULE TYPE DESCRIPTION 200 × 200 VENTILATION AREA WEIGHT ORDER No.

VERSION 3
SIZE
(kg)
2
(W×H)
(mm )
RAL 7035 FTF.
0.86
14927
LOUVRE COVER
ILC 2.2
2 412
400 × 200
9 720
ILC 4.2
ILC 6.2
2.52
14947
LOUVRE COVER
14957
3.58
34 055
800 × 200
LOUVRE COVER
ILC 8.2 LOUVRE COVER 600 × 200 17 028 1.79 14937
ILC 10.2 LOUVRE COVER 1000 × 200 34 055 4.33 14967
2mm Covers on request
LOUVRE COVER
INCL VENTILATIONS AFDÆKNING

SIZE VENTILATION AREA WEIGHT VERSION 3
TYPE DESCRIPTION ORDER No.
(W×H) (mm ) (kg) RAL 7035 FTF.
2
ILC 4.4 LOUVRE COVER 400 × 400 28 393 3.60 14977
ILC 6.4 LOUVRE COVER 600 × 400 49 741 5.00 14987
ILC 8.4 LOUVRE COVER 800 × 400 99 482 7.16 14997
ILC10.4 LOUVRE COVER 1000 × 400 99 482 8.98 15007
2mm Covers on request

2;58 Released : 10-2021
