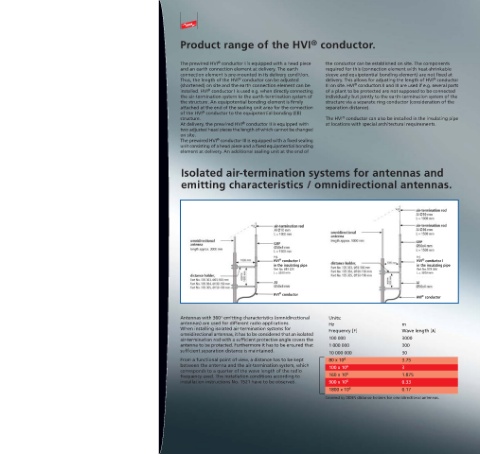

Product range of the HVI conductor.

®
The prewired HVI conductor I is equipped with a head piece the conductor can be established on site. The components
and an earth connection element at delivery. The earth required for this (connection element with heat-shrinkable
connection element is pre-mounted in its delivery condition. sleeve and equipotential bonding element) are not fixed at
®
®
Thus, the length of the HVI conductor can be adjusted delivery. This allows for adjusting the length of HVI conductor
®
(shortened) on site and the earth connection element can be III on site. HVI conductors II and III are used if e.g. several parts
®
installed. HVI conductor I is used e.g. when directly connecting of a plant to be protected are not supposed to be connected
the air-termination system to the earth-termination system of individually but jointly to the earth-termination system of the
the structure. An equipotential bonding element is firmly structure via a separate ring conductor (consideration of the
attached at the end of the sealing unit area for the connection separation distance).
®
of the HVI conductor to the equipotential bonding (EB)
®
structure. The HVI conductor can also be installed in the insulating pipe
®
At delivery, the prewired HVI conductor II is equipped with at locations with special architectural requirements.
two adjusted head pieces the length of which cannot be changed
on site.
®
The prewired HVI conductor III is equipped with a fixed sealing
unit consisting of a head piece and a fixed equipotential bonding
element at delivery. An additional sealing unit at the end of
Isolated air-termination systems for antennas and Omnidirectional antennas
emitting characteristics / omnidirectional antennas.

e.g. e.g.
®
®
HVI conductor I HVI conductor I
in the insulating pipe in the insulating pipe
Part No. 819 320 Part No. 819 360
L = 3200 mm L = 3200 mm

®
HVI conductor
®
HVI conductor
Antennas with 360° emitting characteristics (omnidirectional Units:
antennas) are used for different radio applications. Hz m
When installing isolated air-termination systems for Frequency [F] Wave length [ ]
omnidirectional antennas, it has to be considered that an isolated
air-termination rod with a sufficient protective angle covers the 100 000 3000
antenna to be protected. Furthermore it has to be ensured that 1 000 000 300
sufficient separation distance is maintained.
10 000 000 30
From a functional point of view, a distance has to be kept 80 x 10 6 3.75
between the antenna and the air-termination system, which 100 x 10 6 3
corresponds to a quarter of the wave length of the radio 6
frequency used. The installation conditions according to 160 x 10 1.875
installation instructions No. 1521 have to be observed. 900 x 10 6 0.33
1800 x 10 6 0.17
Covered by DEHN distance holders for omnidirectional antennas.
