BXT M4 E DRC LC M3+ DRC MCM XT

BXT M4 T
1 2 3 4 DRC LC M1+ 5 DRC SCM XT

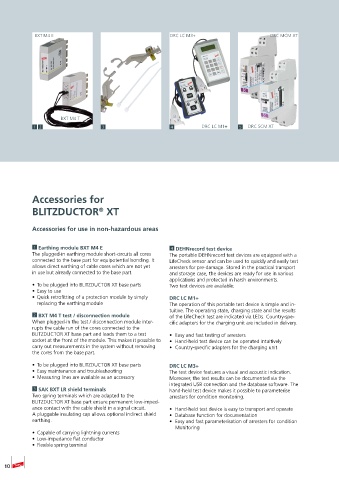

Accessories for

BLITZDUCTOR XT
®

Accessories for use in non-hazardous areas

1 Earthing module BXT M4 E 4 DEHNrecord test device
The plugged-in earthing module short-circuits all cores The portable DEHNrecord test devices are equipped with a
connected to the base part for equipotential bonding. It LifeCheck sensor and can be used to quickly and easily test
allows direct earthing of cable cores which are not yet arresters for pre-damage. Stored in the practical transport
in use but already connected to the base part. and storage case, the devices are ready for use in various
applications and protected in harsh environments.
• To be plugged into BLITZDUCTOR XT base parts Two test devices are available:
• Easy to use
• Quick retrofitting of a protection module by simply DRC LC M1+
replacing the earthing module The operation of this portable test device is simple and in-
tuitive. The operating state, charging state and the results
2 BXT M4 T test / disconnection module of the LifeCheck test are indicated via LEDs. Country-spe-
When plugged-in the test / disconnection module inter- cific adapters for the charging unit are included in delivery.
rupts the cable run of the cores connected to the
BLITZDUCTOR XT base part and leads them to a test • Easy and fast testing of arresters
socket at the front of the module. This makes it possible to • Hand-held test device can be operated intuitively
carry out measurements in the system without removing • Country-specific adapters for the charging unit
the cores from the base part.
• To be plugged into BLITZDUCTOR XT base parts DRC LC M3+
• Easy maintenance and troubleshooting The test device features a visual and acoustic indication.
• Measuring lines are available as an accessory Moreover, the test results can be documented via the
integrated USB connection and the database software. The
3 SAK BXT LR shield terminals hand-held test device makes it possible to parameterise
Two spring terminals which are adapted to the arresters for condition monitoring.
BLITZDUCTOR XT base part ensure permanent low-imped-
ance contact with the cable shield in a signal circuit. • Hand-held test device is easy to transport and operate
A pluggable insulating cap allows optional indirect shield • Database function for documentation
earthing. • Easy and fast parameterisation of arresters for condition
Monitoring
• Capable of carrying lightning currents
• Low-impedance flat conductor
• Flexible spring terminal
