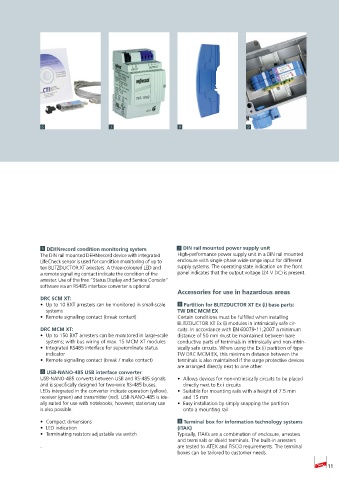

5 DEHNrecord condition monitoring system DIN rail mounted power supply unit
The DIN rail mounted DEHNrecord device with integrated High-performance power supply unit in a DIN rail mounted
LifeCheck sensor is used for condition monitoring of up to enclosure with single-phase wide-range input for different
ten BLITZDUCTOR XT arresters. A three-coloured LED and supply systems. The operating state indication on the front
a remote signalling contact indicate the condition of the panel indicates that the output voltage (24 V DC) is present.
arrester. Use of the free “Status Display and Service Console”
software via an RS485 interface converter is optional.
Accessories for use in hazardous areas
DRC SCM XT:
• Up to 10 BXT arresters can be monitored in small-scale 8 Partition for BLITZDUCTOR XT Ex (i) base parts:
systems TW DRC MCM EX
• Remote signalling contact (break contact) Certain conditions must be fulfilled when installing
BLITZDUCTOR XT Ex (i) modules in intrinsically safe cir-
DRC MCM XT: cuits. In accordance with EN 60079-11;2007 a minimum
• Up to 150 BXT arresters can be monitored in large-scale distance of 50 mm must be maintained between bare
systems; with bus wiring of max. 15 MCM XT modules conductive parts of terminals in intrinsically and non-intrin-
• Integrated RS485 interface for superordinate status sically safe circuits. When using the Ex (i) partition of type
indicator TW DRC MCM EX, this minimum distance between the
• Remote signalling contact (break / make contact) terminals is also maintained if the surge protective devices
are arranged directly next to one other.
6 USB-NANO-485 USB interface converter
USB-NANO-485 converts between USB and RS-485 signals • Allows devices for non-intrinsically circuits to be placed
and is specifically designed for two-wire RS-485 buses. directly next to Ex i circuits
LEDs integrated in the converter indicate operation (yellow), • Suitable for mounting rails with a height of 7.5 mm
receiver (green) and transmitter (red). USB-NANO-485 is ide- and 15 mm
ally suited for use with notebooks, however, stationary use • Easy installation by simply snapping the partition
is also possible. onto a mounting rail

• Compact dimensions 9 Terminal box for information technology systems
• LED indication (ITAK)
• Terminating resistors adjustable via switch Typically, ITAKs are a combination of enclosure, arresters
and terminals or shield terminals. The built-in arresters
. are tested to ATEX and FISCO requirements. The terminal
boxes can be tailored to customer needs.
