3/120 ABB MOTOR PROTECTION AND CONTROL

—

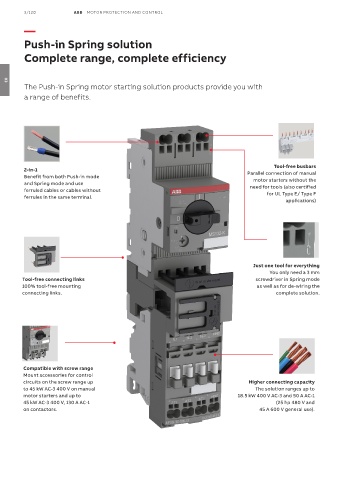

Push-in Spring solution

Complete range, complete efficiency

The Push-in Spring motor starting solution products provide you with
03
a range of benefits.

Tool-free busbars
2-in-1 Parallel connection of manual
Benefit from both Push-in mode motor starters without the
and Spring mode and use need for tools (also certified
ferruled cables or cables without for UL Type E/ Type F
ferrules in the same terminal.
applications)

Just one tool for everything
You only need a 3 mm
Tool-free connecting links screwdriver in Spring mode
100% tool-free mounting as well as for de-wiring the
connecting links. complete solution.

Compatible with screw range
Mount accessories for control
circuits on the screw range up Higher connecting capacity
to 45 kW AC-3 400 V on manual The solution ranges up to
motor starters and up to 18.5 kW 400 V AC-3 and 50 A AC-1
45 kW AC-3 400 V, 130 A AC-1 (25 hp 480 V and
on contactors. 45 A 600 V general use).
