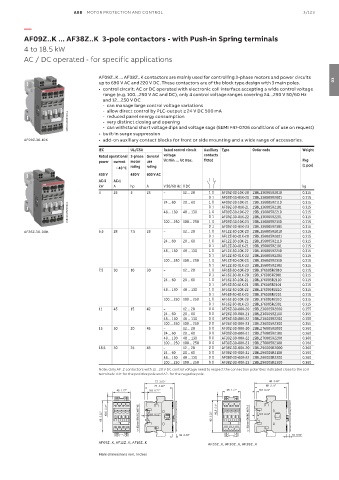

ABB MOTOR PROTECTION AND CONTROL 3/123

—

AF09Z..K ... AF38Z..K 3-pole contactors - with Push-in Spring terminals
4 to 18.5 kW
AC / DC operated - for specific applications

AF09Z..K ... AF38Z..K contactors are mainly used for controlling 3-phase motors and power circuits
up to 690 V AC and 220 V DC. These contactors are of the block type design with 3 main poles. 03
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...250 V 50/60 Hz
and 12...250 V DC
- can manage large control voltage variations
- allow direct control by PLC-output ≥ 24 V DC 500 mA
1SBC101560V0014 - reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47-0706 conditions of use on request)
• built-in surge suppression
AF09Z-30-10K • add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
4 25 5 25 – 12 ... 20 1 0 AF09Z-30-10K-20 1SBL136005R2010 0.315
0 1 AF09Z-30-01K-20 1SBL136005R2001 0.315
24 ... 60 20 ... 60 1 0 AF09Z-30-10K-21 1SBL136005R2110 0.315
1SBC101562V0014 48 ... 130 48 ... 130 1 0 AF09Z-30-10K-22 1SBL136005R2210 0.315
AF09Z-30-01K-21 1SBL136005R2101
0 1
0.315
AF09Z-30-01K-22 1SBL136005R2201
0.315
0 1
100 ... 250 100 ... 250 1 0 AF09Z-30-10K-23 1SBL136005R2310 0.315
AF09Z-30-01K-23 1SBL136005R2301
0 1
0.315
AF26Z-30-00K 5.5 28 7.5 28 – 12 ... 20 1 0 AF12Z-30-10K-20 1SBL156005R2010 0.315
0 1 AF12Z-30-01K-20 1SBL156005R2001 0.315
24 ... 60 20 ... 60 1 0 AF12Z-30-10K-21 1SBL156005R2110 0.315
0 1 AF12Z-30-01K-21 1SBL156005R2101 0.315
48 ... 130 48 ... 130 1 0 AF12Z-30-10K-22 1SBL156005R2210 0.315
0 1 AF12Z-30-01K-22 1SBL156005R2201 0.315
100 ... 250 100 ... 250 1 0 AF12Z-30-10K-23 1SBL156005R2310 0.315
0 1 AF12Z-30-01K-23 1SBL156005R2301 0.315
7.5 30 10 30 – 12 ... 20 1 0 AF16Z-30-10K-20 1SBL176005R2010 0.315
0 1 AF16Z-30-01K-20 1SBL176005R2001 0.315
24 ... 60 20 ... 60 1 0 AF16Z-30-10K-21 1SBL176005R2110 0.315
0 1 AF16Z-30-01K-21 1SBL176005R2101 0.315
48 ... 130 48 ... 130 1 0 AF16Z-30-10K-22 1SBL176005R2210 0.315
0 1 AF16Z-30-01K-22 1SBL176005R2201 0.315
100 ... 250 100 ... 250 1 0 AF16Z-30-10K-23 1SBL176005R2310 0.315
0 1 AF16Z-30-01K-23 1SBL176005R2301 0.315
11 45 15 42 – 12 ... 20 0 0 AF26Z-30-00K-20 1SBL236005R2000 0.355
24 ... 60 20 ... 60 0 0 AF26Z-30-00K-21 1SBL236005R2100 0.355
48 ... 130 48 ... 130 0 0 AF26Z-30-00K-22 1SBL236005R2200 0.355
100 ... 250 100 ... 250 0 0 AF26Z-30-00K-23 1SBL236005R2300 0.355
15 50 20 45 – 12 ... 20 0 0 AF30Z-30-00K-20 1SBL276005R2000 0.360
24 ... 60 20 ... 60 0 0 AF30Z-30-00K-21 1SBL276005R2100 0.360
48 ... 130 48 ... 130 0 0 AF30Z-30-00K-22 1SBL276005R2200 0.360
100 ... 250 100 ... 250 0 0 AF30Z-30-00K-23 1SBL276005R2300 0.360
18.5 50 25 45 – 12 ... 20 0 0 AF38Z-30-00K-20 1SBL296005R2000 0.360
24 ... 60 20 ... 60 0 0 AF38Z-30-00K-21 1SBL296005R2100 0.360
48 ... 130 48 ... 130 0 0 AF38Z-30-00K-22 1SBL296005R2200 0.360
100 ... 250 100 ... 250 0 0 AF38Z-30-00K-23 1SBL296005R2300 0.360
Note: Only AF..Z contactors with 12...20 V DC control voltage need to respect the connection polarities indicated close to the coil
terminals: A1+ for the positive pole and A2- for the negative pole.
77 3.03" 86 3.39"
71 2.80" 80 3.15"
45 1.77" 5.5 0.22" 45 1.77" 5.5 0.22"
10.5 0.41" 10.5 0.41"
82 3.22" 35mm EN/EC 60715 5.5 0.22" 82 3.22" 35mm EN/EC 60715 5.5 0.22"

10 0.39" 15 0.59"
AF09Z..K, AF12Z..K, AF16Z..K AF26Z..K, AF30Z..K, AF38Z..K

Main dimensions mm, inches
