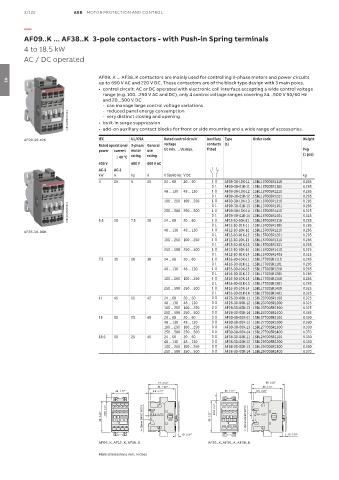

Page 198 - ABB_Motor _Protection_and_Control_catalogue_20221216

3/122 ABB MOTOR PROTECTION AND CONTROL

—

AF09..K ... AF38..K 3-pole contactors - with Push-in Spring terminals
4 to 18.5 kW
AC / DC operated

AF09..K ... AF38..K contactors are mainly used for controlling 3-phase motors and power circuits
up to 690 V AC and 220 V DC. These contactors are of the block type design with 3 main poles.
03
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...500 V 50/60 Hz
and 20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
1SBC101560V0014 • built-in surge suppression
- very distinct closing and opening

• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
AF09-30-10K IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts (1)
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
4 25 5 25 24 ... 60 20 ... 60 1 0 AF09-30-10K-11 1SBL137005R1110 0.285
0 1 AF09-30-01K-11 1SBL137005R1101 0.285
48 ... 130 48 ... 130 1 0 AF09-30-10K-12 1SBL137005R1210 0.285
0 1 AF09-30-01K-12 1SBL137005R1201 0.285
100 ... 250 100 ... 250 1 0 AF09-30-10K-13 1SBL137005R1310 0.285
1SBC101562V0014 250 ... 500 250 ... 500 1 0 AF09-30-10K-14 1SBL137005R1410 0.325
0 1
AF09-30-01K-13 1SBL137005R1301
0.285
0 1
AF09-30-01K-14 1SBL137005R1401
0.325
0 1
5.5 28 7.5 28 24 ... 60 20 ... 60 1 0 AF12-30-10K-11 1SBL157005R1110 0.285
AF12-30-01K-11 1SBL157005R1101
0.285
48 ... 130 48 ... 130 1 0 AF12-30-10K-12 1SBL157005R1210 0.285
AF26-30-00K
0 1 AF12-30-01K-12 1SBL157005R1201 0.285
100 ... 250 100 ... 250 1 0 AF12-30-10K-13 1SBL157005R1310 0.285
0 1 AF12-30-01K-13 1SBL157005R1301 0.285
250 ... 500 250 ... 500 1 0 AF12-30-10K-14 1SBL157005R1410 0.325
0 1 AF12-30-01K-14 1SBL157005R1401 0.325
7.5 30 10 30 24 ... 60 20 ... 60 1 0 AF16-30-10K-11 1SBL177005R1110 0.285
0 1 AF16-30-01K-11 1SBL177005R1101 0.285
48 ... 130 48 ... 130 1 0 AF16-30-10K-12 1SBL177005R1210 0.285
0 1 AF16-30-01K-12 1SBL177005R1201 0.285
100 ... 250 100 ... 250 1 0 AF16-30-10K-13 1SBL177005R1310 0.285
0 1 AF16-30-01K-13 1SBL177005R1301 0.285
250 ... 500 250 ... 500 1 0 AF16-30-10K-14 1SBL177005R1410 0.325
0 1 AF16-30-01K-14 1SBL177005R1401 0.325
11 45 15 42 24 ... 60 20 ... 60 0 0 AF26-30-00K-11 1SBL237005R1100 0.325
48 ... 130 48 ... 130 0 0 AF26-30-00K-12 1SBL237005R1200 0.325
100 ... 250 100 ... 250 0 0 AF26-30-00K-13 1SBL237005R1300 0.325
250 ... 500 250 ... 500 0 0 AF26-30-00K-14 1SBL237005R1400 0.365
15 50 20 45 24 ... 60 20 ... 60 0 0 AF30-30-00K-11 1SBL277005R1100 0.330
48 ... 130 48 ... 130 0 0 AF30-30-00K-12 1SBL277005R1200 0.330
100 ... 250 100 ... 250 0 0 AF30-30-00K-13 1SBL277005R1300 0.330
250 ... 500 250 ... 500 0 0 AF30-30-00K-14 1SBL277005R1400 0.370
18.5 50 25 45 24 ... 60 20 ... 60 0 0 AF38-30-00K-11 1SBL297005R1100 0.330
48 ... 130 48 ... 130 0 0 AF38-30-00K-12 1SBL297005R1200 0.330
100 ... 250 100 ... 250 0 0 AF38-30-00K-13 1SBL297005R1300 0.330
250 ... 500 250 ... 500 0 0 AF38-30-00K-14 1SBL297005R1400 0.370
77 3.03" 86 3.39"
71 2.80" 80 3.15"
45 1.77" 5.5 0.22" 45 1.77" 5.5 0.22"

10.5 0.41" 10.5 0.41"
82 3.22" 35mm EN/EC 60715 5.5 0.22" 82 3.22" 35mm EN/EC 60715 5.5 0.22"

10 0.39" 15 0.59"
AF09..K, AF12..K, AF16..K AF26..K, AF30..K, AF38..K

Main dimensions mm, inches
