3/124 ABB MOTOR PROTECTION AND CONTROL

—

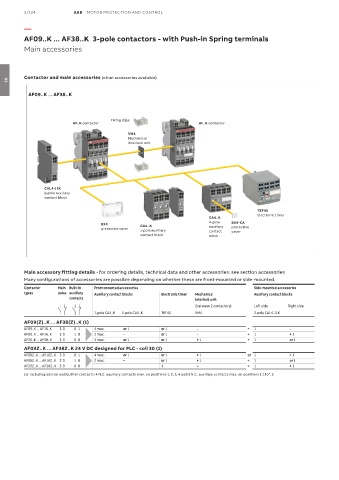

AF09..K ... AF38..K 3-pole contactors - with Push-in Spring terminals
Main accessories

Contactor and main accessories (other accessories available)
03

AF09..K ... AF38..K

Fixing clips
AF..K contactor AF..K contactor
VM4
Mechanical
interlock unit

CAL4-11K
2-pole auxiliary
contact block

TEF4S
Electronic timer
CA4..K
4-pole BX4-CA
BX4 CA4..K auxiliary
protective cover 1-pole auxiliary contact protective
cover
contact block block

Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Built-in Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Electronic timer Mechanical Auxiliary contact blocks
contacts interlock unit
(between 2 contactors) Left side Right side
1-pole CA4..K 4-pole CA4..K TEF4S VM4 2-pole CAL4-11K
AF09(Z)..K ... AF38(Z)..K (1)
AF09..K ... AF16..K 3 0 0 1 4 max. or 1 or 1 – + 1 –
AF09..K ... AF16..K 3 0 1 0 2 max. – or 1 – + 1 + 1
AF26..K ... AF38..K 3 0 0 0 4 max. or 1 or 1 + 1 + 1 or 1
AF09Z..K ... AF38Z..K 24 V DC designed for PLC - coil 30 (1)
AF09Z..K ... AF16Z..K 3 0 0 1 4 max. or 1 or 1 + 1 or 1 + 1
AF09Z..K ... AF16Z..K 3 0 1 0 2 max. – or 1 + 1 + 1 or 1
AF26Z..K ... AF38Z..K 3 0 0 0 1 – + 1 + 1
(1) Including add-on and built-in contacts: 4 N.C. auxiliary contacts max. on positions 1, 2, 3, 4 and 3 N.C. auxiliary contacts max. on positions 1 ±30°, 5
