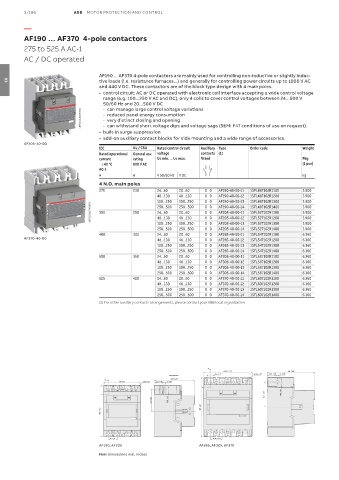

3/186 ABB MOTOR PROTECTION AND CONTROL

—
AF190 … AF370 4-pole contactors

275 to 525 A AC-1
AC / DC operated

AF190 ... AF370 4-pole contactors are mainly used for controlling non-inductive or slightly induc-
tive loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 1000 V AC
03
and 440 V DC. These contactors are of the block type design with 4 main poles.
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V
50/60 Hz and 20...500 V DC
- can manage large control voltage variations
1SFC101160V0001 - reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
• built-in surge suppression
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
AF205-40-00
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use voltage contacts (1)
current rating Uc min. ... Uc max. fitted Pkg
θ ≤ 40 °C 600 V AC (1 pce)
AC-1
A A V 50/60 Hz V DC kg
4 N.O. main poles
275 230 24...60 20...60 0 0 AF190-40-00-11 1SFL487102R1100 3.900
48...130 48...130 0 0 AF190-40-00-12 1SFL487102R1200 3.900
100...250 100...250 0 0 AF190-40-00-13 1SFL487102R1300 3.900
1SFC101197V0001 350 250 250...500 250...500 0 0 AF190-40-00-14 1SFL487102R1400 3.900
AF205-40-00-11
1SFL527102R1100
3.900
24...60
20...60
0 0
0 0
AF205-40-00-12
48...130
48...130
3.900
1SFL527102R1200
100...250 100...250 0 0 AF205-40-00-13 1SFL527102R1300 3.900
250...500 250...500 0 0 AF205-40-00-14 1SFL527102R1400 3.900
400 300 24...60 20...60 0 0 AF265-40-00-11 1SFL547102R1100 6.360
AF370-40-00 48...130 48...130 0 0 AF265-40-00-12 1SFL547102R1200 6.360
100...250 100...250 0 0 AF265-40-00-13 1SFL547102R1300 6.360
250...500 250...500 0 0 AF265-40-00-14 1SFL547102R1400 6.360
500 350 24...60 20...60 0 0 AF305-40-00-11 1SFL587102R1100 6.360
48...130 48...130 0 0 AF305-40-00-12 1SFL587102R1200 6.360
100...250 100...250 0 0 AF305-40-00-13 1SFL587102R1300 6.360
250...500 250...500 0 0 AF305-40-00-14 1SFL587102R1400 6.360
525 420 24...60 20...60 0 0 AF370-40-00-11 1SFL607102R1100 6.360
48...130 48...130 0 0 AF370-40-00-12 1SFL607102R1200 6.360
100...250 100...250 0 0 AF370-40-00-13 1SFL607102R1300 6.360
250...500 250...500 0 0 AF370-40-00-14 1SFL607102R1400 6.360
(1) For other auxiliary contacts arrangements, please contact your ABB local organization.

A
183.75 7.23" 180 7.09"
19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"
SECTION A-A
A 152.5 6.00"
140 5.51" ø 8.5 0.33" 35.5 1.40" 5 0.20"
94.7 3.73" 33.4 1.31"
83.5 3.29" 29.5 1.16"
225 8.86"
196 7.72"

35 1.38" 43.75 1.72"
AF190, AF205 AF265, AF305, AF370
Main dimensions mm, inches
