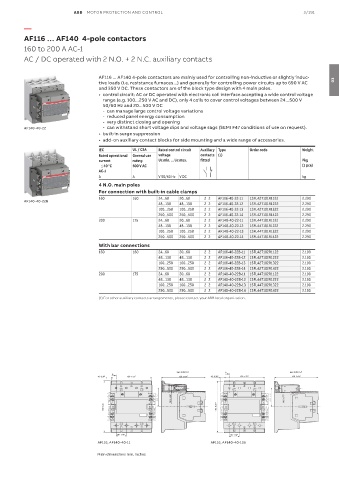

Page 267 - ABB_Motor _Protection_and_Control_catalogue_20221216

ABB MOTOR PROTECTION AND CONTROL 3/191

—
AF116 … AF140 4-pole contactors

160 to 200 A AC-1
AC / DC operated with 2 N.O. + 2 N.C. auxiliary contacts

AF116 ... AF140 4-pole contactors are mainly used for controlling non-inductive or slightly induc-
tive loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC 03
and 350 V DC. These contactors are of the block type design with 4 main poles.
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
1SFC101159V0001 50/60 Hz and 20...500 V DC
range (e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V
- can manage large control voltage variations
- reduced panel energy consumption
- very distinct closing and opening
AF140-40-22 - can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
• built-in surge suppression
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use voltage contacts (1)
current rating Uc min. ... Uc max. fitted Pkg
θ ≤ 40 °C 600 V AC (1 pce)
AC-1
1SFC101194V0001 A 4 N.O. main poles V 50/60 Hz V DC kg
A
For connection with built-in cable clamps
160 160 24...60 20...60 2 2 AF116-40-22-11 1SFL427101R1122 2.290
AF140-40-22B
48...130 48...130 2 2 AF116-40-22-12 1SFL427101R1222 2.290
100...250 100...250 2 2 AF116-40-22-13 1SFL427101R1322 2.290
250...500 250...500 2 2 AF116-40-22-14 1SFL427101R1422 2.290
200 175 24...60 20...60 2 2 AF140-40-22-11 1SFL447101R1122 2.290
48...130 48...130 2 2 AF140-40-22-12 1SFL447101R1222 2.290
100...250 100...250 2 2 AF140-40-22-13 1SFL447101R1322 2.290
250...500 250...500 2 2 AF140-40-22-14 1SFL447101R1422 2.290
With bar connections
160 160 24...60 20...60 2 2 AF116-40-22B-11 1SFL427102R1122 2.190
48...130 48...130 2 2 AF116-40-22B-12 1SFL427102R1222 2.190
100...250 100...250 2 2 AF116-40-22B-13 1SFL427102R1322 2.190
250...500 250...500 2 2 AF116-40-22B-14 1SFL427102R1422 2.190
200 175 24...60 20...60 2 2 AF140-40-22B-11 1SFL447102R1122 2.190
48...130 48...130 2 2 AF140-40-22B-12 1SFL447102R1222 2.190
100...250 100...250 2 2 AF140-40-22B-13 1SFL447102R1322 2.190
250...500 250...500 2 2 AF140-40-22B-14 1SFL447102R1422 2.190
(1) For other auxiliary contacts arrangements, please contact your ABB local organization.

A-
SECTION A- A A A SECTION SECTION A-A
A
SECTION A-A
A A
10 0.39 10 0.39" 120 4.72 120 4.72" 128 5.04 128 5.04" 10 0.39 10 0.39" 120 4.72" 120 4.72" 128 5.04" 128 5.04"
"
"
"
"
55.5 0.22" 55.5 0.22" 19.5 4.96" 19.5 4.96" 55.5 2.18" 55.5 2.18" 19.5 0.77" 19.5 0.77"
150 5.91" 150 5.91" 150 5.91" 150 5.91"
30 1.18" 30 1.18" 30 1.18" 30 1.18"
AF116, AF140-40-11 AF116, AF140-40-11B

Main dimensions mm, inches
