3/190 ABB MOTOR PROTECTION AND CONTROL

—

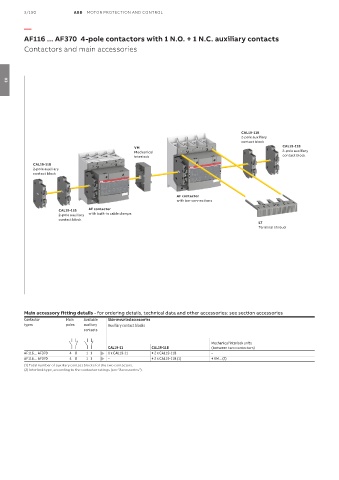

AF116 ... AF370 4-pole contactors with 1 N.O. + 1 N.C. auxiliary contacts
Contactors and main accessories

03

CAL19-11B
2-pole auxiliary
contact block
VM CAL19-11B
Mechanical 2-pole auxiliary
interlock contact block
CAL19-11B
2-pole auxiliary
contact block

AF contactor
with bar connections
CAL19-11B AF contactor
2-pole auxiliary with built-in cable clamps
contact block
LT
Terminal shroud

Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Contactor Main Available Side-mounted accessories
types poles auxiliary Auxiliary contact blocks
contacts

Mechanical interlock units
CAL19-11 CAL19-11B (between two contactors)
AF116 ... AF370 4 0 1 1 1 x CAL19-11 + 2 x CAL19-11B –
AF116 ... AF370 4 0 1 1 – + 2 x CAL19-11B (1) + VM... (2)
(1) Total number of auxiliary contact blocks for the two contactors.
(2) Interlock type, according to the contactor ratings (see "Accessories").
