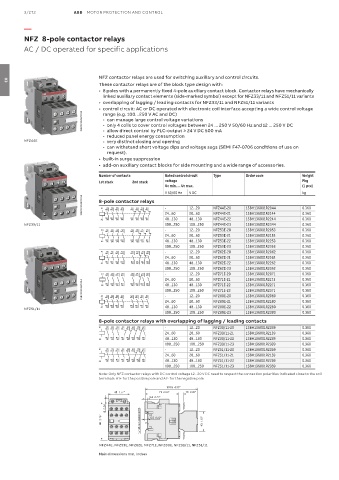

3/272 ABB MOTOR PROTECTION AND CONTROL

—

NFZ 8-pole contactor relays
AC / DC operated for specific applications

NFZ contactor relays are used for switching auxiliary and control circuits.
These contactor relays are of the block type design with:
03
• 8 poles with a permanently fixed 4-pole auxiliary contact block. Contactor relays have mechanically
linked auxiliary contact elements (side-marked symbol) except for NFZ33/11 and NFZ51/11 variants
• overlapping of lagging / leading contacts for NFZ33/11 and NFZ51/11 variants
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
1SBC101029V0014 - can manage large control voltage variations
range (e.g. 100...250 V AC and DC)
- only 4 coils to cover control voltages between 24 ... 250 V 50/60 Hz and 12 ... 250 V DC
- allow direct control by PLC-output ≥ 24 V DC 500 mA
- reduced panel energy consumption
NFZ44E - very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47-0706 conditions of use on
request).
• built-in surge suppression
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
Number of contacts Rated control circuit Type Order code Weight
1st stack 2nd stack voltage Pkg
Uc min. ... Uc max. (1 pce)
V 50/60 Hz V DC kg
1SBC101042V0014 8-pole contactor relays - 12...20 NFZ44E-20 1SBH136001R2044 0.360
23
61
71
81
13
43
A1
51
33
NO
NO
NC
NC
NO
NC
NC
NO
48...130
0.360
NO NO NO NO NC NC NC NC 24...60 20...60 NFZ44E-21 1SBH136001R2144 0.360
48...130
NFZ44E-22
1SBH136001R2244
A2 14 24 34 44 52 62 72 82
NFZ33/11 100...250 100...250 NFZ44E-23 1SBH136001R2344 0.360
A1 13 23 33 43 53 61 71 81 - 12...20 NFZ53E-20 1SBH136001R2053 0.360
NO NO NO NO NO NC NC NC
24...60 20...60 NFZ53E-21 1SBH136001R2153 0.360
NO NO NO NO NO NC NC NC
A2 14 24 34 44 54 62 72 82 48...130 48...130 NFZ53E-22 1SBH136001R2253 0.360
100...250 100...250 NFZ53E-23 1SBH136001R2353 0.360
A1 13 23 33 43 53 61 71 83 - 12...20 NFZ62E-20 1SBH136001R2062 0.360
NO NO NO NO NO NC NC NO
24...60 20...60 NFZ62E-21 1SBH136001R2162 0.360
NO NO NO NO NO NC NC NO 48...130 48...130 NFZ62E-22 1SBH136001R2262 0.360
A2 14 24 34 44 54 62 72 84
100...250 100...250 NFZ62E-23 1SBH136001R2362 0.360
A1 13 23 33 43 53 61 73 83 - 12...20 NFZ71E-20 1SBH136001R2071 0.360
NO NO NO NO NO NC NO NO 24...60 20...60 NFZ71E-21 1SBH136001R2171 0.360
1SBC101043V0014 A2 NO 14 NO 24 NO 34 NO 44 NO 54 NC 62 NO 74 NO 84 48...130 48...130 NFZ71E-22 1SBH136001R2271 0.360
NFZ71E-23
100...250
0.360
1SBH136001R2371
100...250
-
53
83
63
73
23
33
A1
13
43
NO
NO
NO
NO
NO
NO
NO
NO
0.360
24...60 12...20 NFZ80E-20 1SBH136001R2080 0.360
1SBH136001R2180
NFZ80E-21
20...60
NO NO NO NO NO NO NO NO 48...130 48...130 NFZ80E-22 1SBH136001R2280 0.360
NFZ51/11 A2 14 24 34 44 54 64 74 84
100...250 100...250 NFZ80E-23 1SBH136001R2380 0.360
8-pole contactor relays with overlapping of lagging / leading contacts
A1 13 23 33 41 51 61 75 87 - 12...20 NFZ33/11-20 1SBH136001R2039 0.360
NO NO NO NC NC NC NC NO
24...60 20...60 NFZ33/11-21 1SBH136001R2139 0.360
NO NO NO NC NC NC NC NO 48...130 48...130 NFZ33/11-22 1SBH136001R2239 0.360
A2 14 24 34 42 52 62 76 88
100...250 100...250 NFZ33/11-23 1SBH136001R2339 0.360
A1 13 23 33 43 53 61 75 87 - 12...20 NFZ51/11-20 1SBH136001R2059 0.360
NO NO NO NO NO NC NC NO
24...60 20...60 NFZ51/11-21 1SBH136001R2159 0.360
NO NO NO NO NO NC NC NO 48...130 48...130 NFZ51/11-22 1SBH136001R2259 0.360
A2 14 24 34 44 54 62 76 88
100...250 100...250 NFZ51/11-23 1SBH136001R2359 0.360
Note: Only NFZ contactor relays with DC control voltage 12...20 V DC need to respect the connection polarities indicated close to the coil
terminals: A1+ for the positive pole and A2- for the negative pole
110.5 4.35"
45 1.77" 71 2.80" 10 0.39" 35 1.38" 2 x
5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69" 60 2.36" 70 2.76"
5 0.20"
NFZ44E, NFZ53E, NFZ62E, NFZ71E, NFZ80E, NFZ33/11, NFZ51/11 5 0.20"
Main dimensions mm, inches
