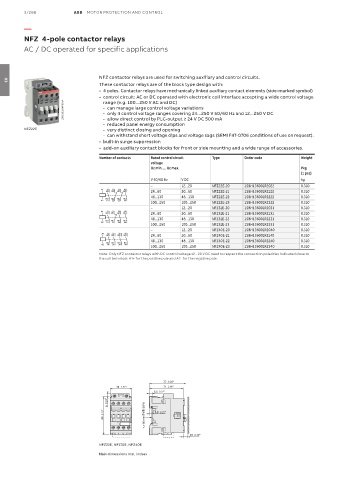

3/268 ABB MOTOR PROTECTION AND CONTROL

—

NFZ 4-pole contactor relays
AC / DC operated for specific applications

NFZ contactor relays are used for switching auxiliary and control circuits.
These contactor relays are of the block type design with:
03
• 4 poles. Contactor relays have mechanically linked auxiliary contact elements (side-marked symbol)
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC)
1SBC101104F0014 - can manage large control voltage variations
- only 4 control voltage ranges covering 24...250 V 50/60 Hz and 12...250 V DC
- allow direct control by PLC-output ≥ 24 V DC 500 mA
- reduced panel energy consumption
NFZ22E - very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47-0706 conditions of use on request).
• built-in surge suppression
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Number of contacts Rated control circuit Type Order code Weight
voltage
Uc min. ... Uc max. Pkg
(1 pce)
V 50/60 Hz V DC kg
– 12...20 NFZ22E-20 1SBH136001R2022 0.310
A1 13 21 31 43
NO NC NC NO 24...60 20...60 NFZ22E-21 1SBH136001R2122 0.310
48...130 48...130 NFZ22E-22 1SBH136001R2222 0.310
NO NC NC NO
A2 14 22 32 44
100...250 100...250 NFZ22E-23 1SBH136001R2322 0.310
– 12...20 NFZ31E-20 1SBH136001R2031 0.310
A1 13 21 33 43
NO NC NO NO 24...60 20...60 NFZ31E-21 1SBH136001R2131 0.310
48...130 48...130 NFZ31E-22 1SBH136001R2231 0.310
NO NC NO NO
A2 14 22 34 44
100...250 100...250 NFZ31E-23 1SBH136001R2331 0.310
– 12...20 NFZ40E-20 1SBH136001R2040 0.310
A1 13 23 33 43
NO NO NO NO 24...60 20...60 NFZ40E-21 1SBH136001R2140 0.310
48...130 48...130 NFZ40E-22 1SBH136001R2240 0.310
NO NO NO NO
A2 14 24 34 44
100...250 100...250 NFZ40E-23 1SBH136001R2340 0.310
Note: Only NFZ contactor relays with DC control voltage 12...20 V DC need to respect the connection polarities indicated close to
the coil terminals: A1+ for the positive pole and A2- for the negative pole.

77 3.03"
35 1.38"
45 1.77" 71 2.80" 2 x
ø 4.2 0.17"
5.5 0.22" M4 8-32 UNC
6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20"

10 0.39"
5 0.20"
NFZ22E, NFZ31E, NFZ40E
Main dimensions mm, inches
