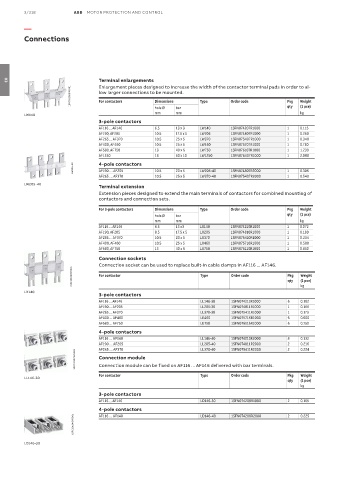

Connections

Terminal enlargements
03
Enlargement pieces designed to increase the width of the contactor terminal pads in order to al-
1SFC101050V0001 low larger connections to be mounted. Type Order code Pkg Weight
Dimensions
For contactors
hole Ø bar qty (1 pce)
mm mm kg
LW140
3-pole contactors
AF116 ... AF146 6.5 13 x 3 LW140 1SFN074207R1000 1 0.115
AF190, AF205 10.5 17.5 x 5 LW205 1SFN074807R1000 1 0.260
AF265 ... AF370 10.5 25 x 5 LW370 1SFN075407R1000 1 0.340
AF400, AF460 10.5 25 x 5 LW460 1SFN075707R1000 1 0.730
AF580, AF750 13 40 x 6 LW750 1SFN076107R1000 1 1.230
AF1250 13 50 x 10 LW1250 1SFN076407R1000 1 2.000
LW205-40 4-pole contactors 10.5 20 x 5 LW205-40 1SFN074807R2000 1 0.306
AF190 … AF205
AF265 … AF370 10.5 25 x 5 LW370-40 1SFN075407R2000 1 0.540
LW205-40
Terminal extension
Extension pieces designed to extend the main terminals of contactors for combined mounting of
contactors and connection sets.
For 3-pole contactors Dimensions Type Order code Pkg Weight
hole Ø bar qty (1 pce)
mm mm kg
AF116 ... AF146 6.5 13 x3 LX140 1SFN074210R1000 1 0.072
AF190, AF205 8.5 17.5 x 5 LX205 1SFN074810R1000 1 0.180
AF265 ... AF370 10.5 20 x 5 LX370 1SFN075410R1000 1 0.234
AF400, AF460 10.5 25 x 5 LX460 1SFN075710R1000 1 0.500
AF580, AF750 13 40 x 6 LX750 1SFN076110R1000 1 0.850
Connection sockets
Connection socket can be used to replace built-in cable clamps in AF116 ... AF146.
1SFC101049V0001 For contactor Type Order code Pkg Weight
qty
(1 pce)
LX140 kg
3-pole contactors
AF116 ... AF146 LL146-30 1SFN074211R1000 6 0.102
AF190 ... AF205 LL205-30 1SFN074811R1000 1 0.166
AF265 ... AF370 LL370-30 1SFN075411R1000 1 0.173
AF400 ... AF460 LE460 1SFN075716R1000 6 0.600
AF580 ... AF750 LE750 1SFN076116R1000 6 0.750
4-pole contactors
AF116 … AF140 LL146-40 1SFN074211R2000 8 0.132
AF190 … AF205 LL205-40 1SFN074811R2000 2 0.216
AF265 … AF370 LL370-40 1SFN075411R2000 2 0.224
1SFC101073V0001 Connection module

Connection module can be fixed on AF116 ... AF146 delivered with bar terminals.
For contactor Type Order code Pkg Weight
LL146-30
qty (1 pce)
kg
3-pole contactors
AF116 ... AF146 LD146-30 1SFN074208R1000 2 0.165
4-pole contactors LD146-40 1SFN074208R2000 2 0.225
AF116 … AF140
1SFC101046V0001

LD146-30
